BVA Hydraulics PE50S3L03A Electric Hydraulic Pumps

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

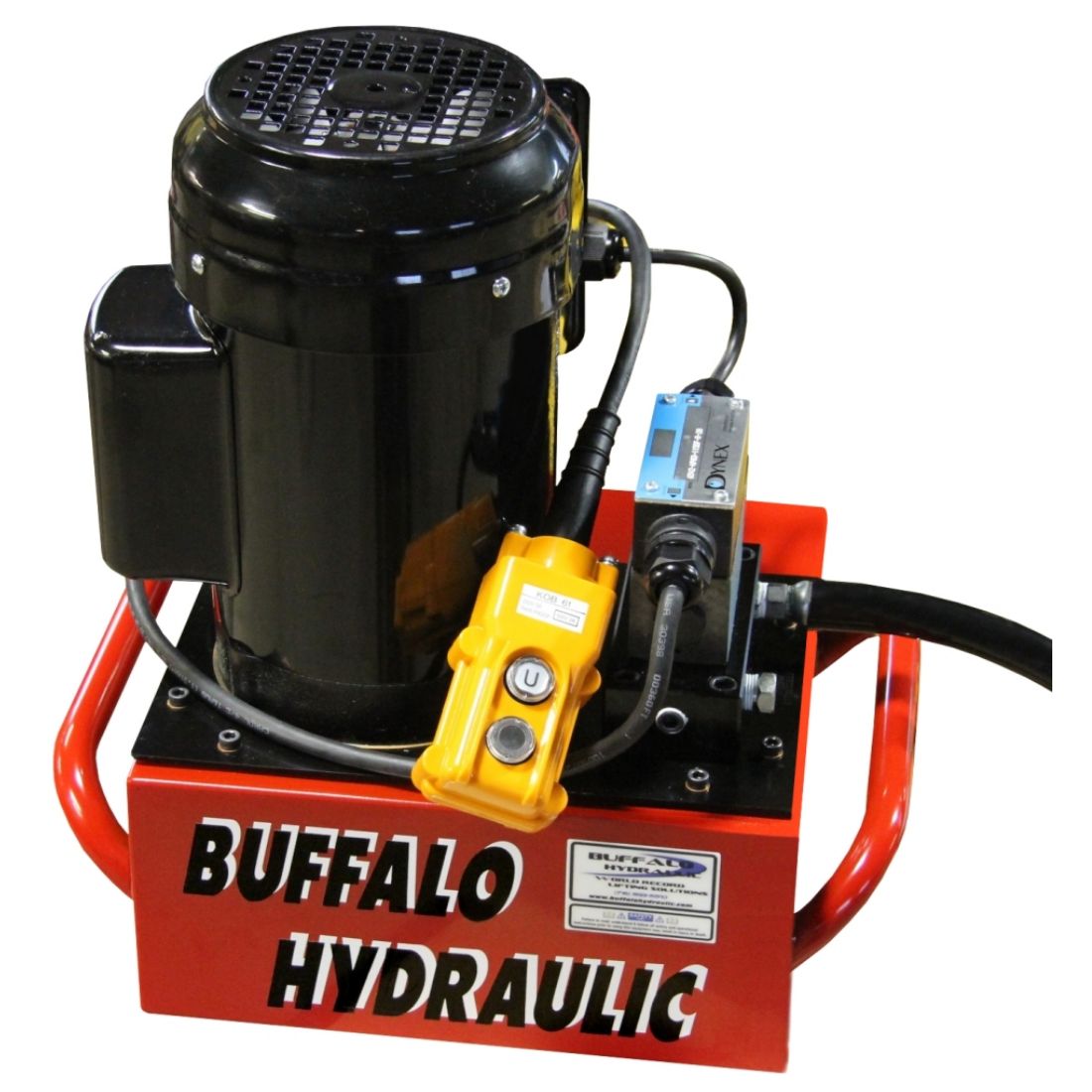

BVA Hydraulics PE50S3L03A Electric Hydraulic Pumps

  • 10,000 psi maximum pressure.
  • 120 VAC, 1 Ph., 60 hz.
  • 100% Duty cycle, NEMA 5 enclosure.
  • 2-Stage design with built-in relief valve.
  • 476 cu.” of oil per minute from 0 – 700 psi (1st Stage).
  • 61 cu.” of oil per minute from 701 – 10,000 psi (2nd Stage).
  • 3 Gallon reservoir volume.
  • 80 dBA.
  • 3-Way, 3-position, tandem center, solenoid-operated directional valve.
  • 24 VAC handheld push button (Advance/Retract) pendant.

BVA Hydraulics PE Series of Electric Hydraulic Pumps offers over 120 standard, single-phase models available.

0.5, 1, and 1.5 Hp, manually operated and solenoid operated directional valves and reservoir volumes from 1 – 25 gallons in this platform provide endless options.

All models start under full load and are easily modified to meet your unique requirements.
