Power Team RSS Series, High Tonnage, Hydraulic Jacking Cylinders.

• 10,000 p.s.i. maximum operating pressure.
• Single acting, spring return design.
• 7 models offered ranging from 10 – 250 tons capacity.
• Nitro-Carburization plunger treatment for added corrosion and abrasion resistance.
• Quick disconnect coupler and unique retract spring design for increased plunger return time.

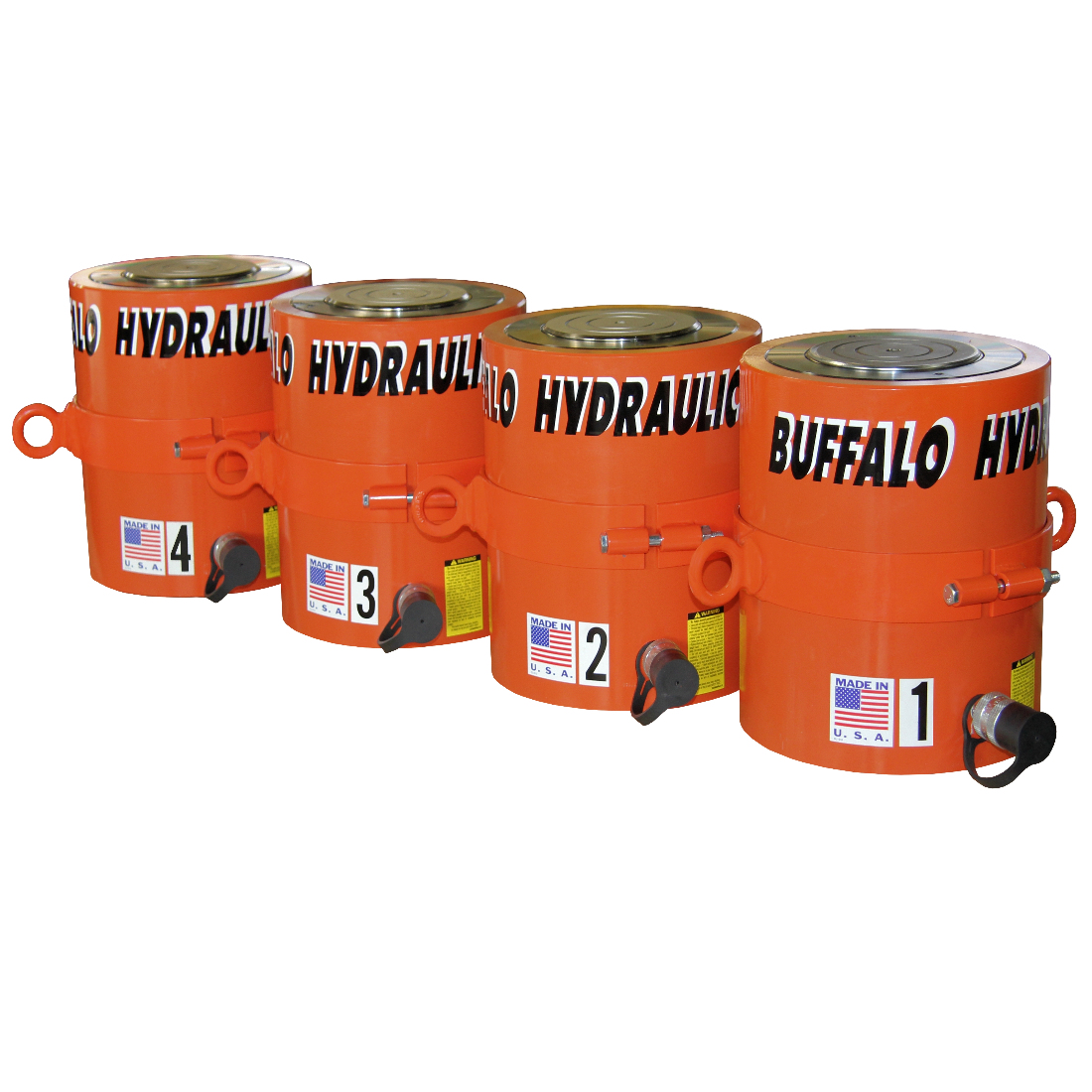

• RSS-2503 shown.
• 250 Tons (500,000 lbs.) capacity – each @9,956 p.s.i.
• 11.44″ Retracted height.
• 3.00″ Stroke/travel.
• 9.88″ Cylinder body diameter.
• 220 lbs. each.

The Power Peam RSS family of high tonnage hydraulic cylinders are easily incorporated into a single or multi-point hydraulic system.  The spring return feature allows for faster retract times with no load required.  RSS-2503 (Shown) is the highest capacity, single acting, spring return model offered and provides 250 tons of lifting force per jacking point.
