Power Team RH2008 Hollow Plunger Cylinders
Inquire about Power Team RH2008 Hollow Plunger Cylinders

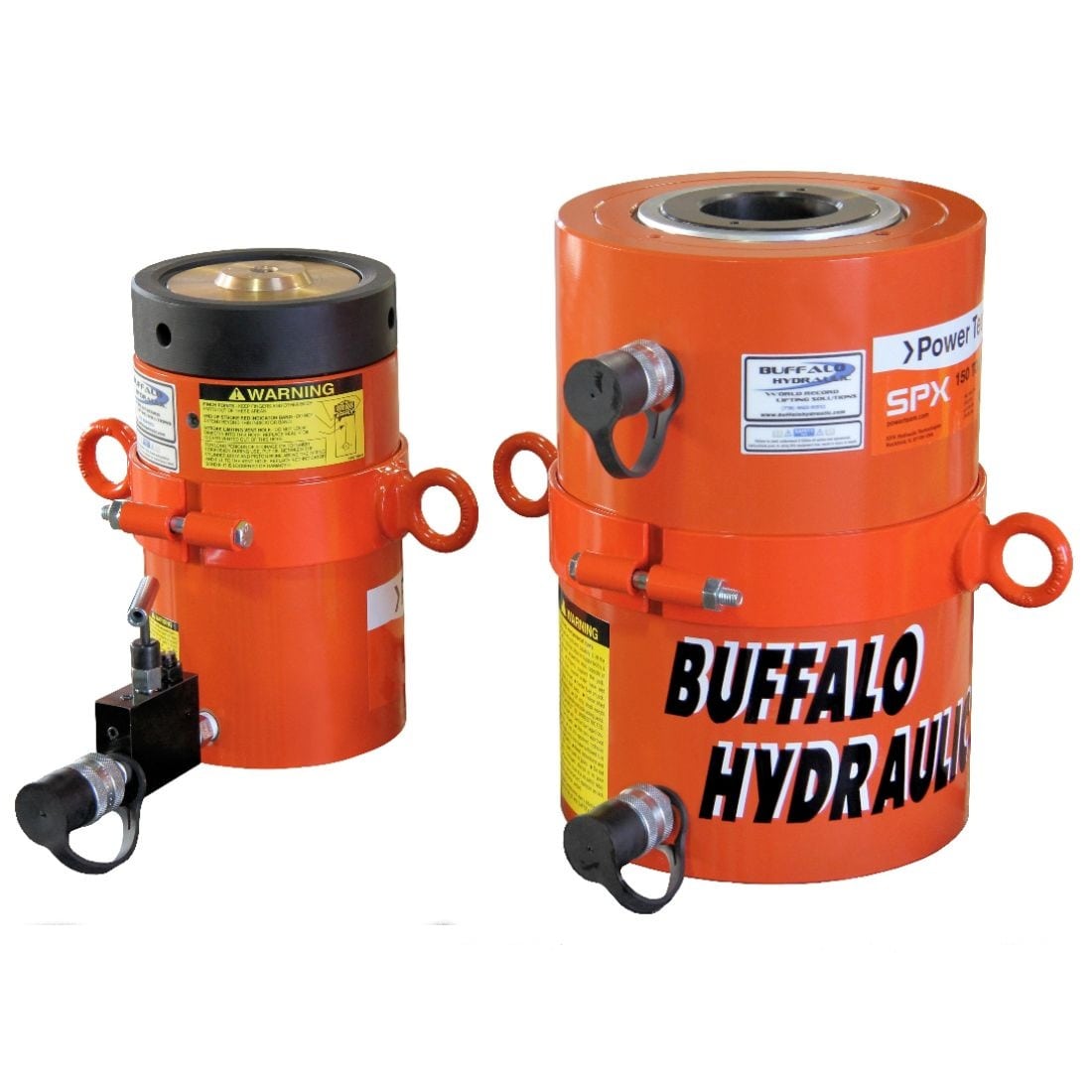

Power Team RH2008 Hollow Plunger Hydraulic Cylinders
- 10,000 psi Maximum operating pressure.
- Double acting, hollow plunger, through hole design.
- 200 Tons capacity advance force @9,888 psi.
- 75 Tons capacity retract force @9,404 psi.
- 16 – 1/16″ Retracted length.
- 8.00″ Stroke/travel.
- 4 1/16″ Diameter through hole for pulling and tensioning.
- Four 1 – 1/4″ 7 base mounting holes.
- 7 – 1/2″ Diameter, chrome plunger for added corrosion resistance and durability.
- 311 Lbs.
The Power Team RH Series of double acting, hollow plunger cylinders are available in 30, 60, 100, 150 and 200 tons capacity.
ASME B30.1 design ensures rugged reliability on the most critical pulling and tensioning applications.
