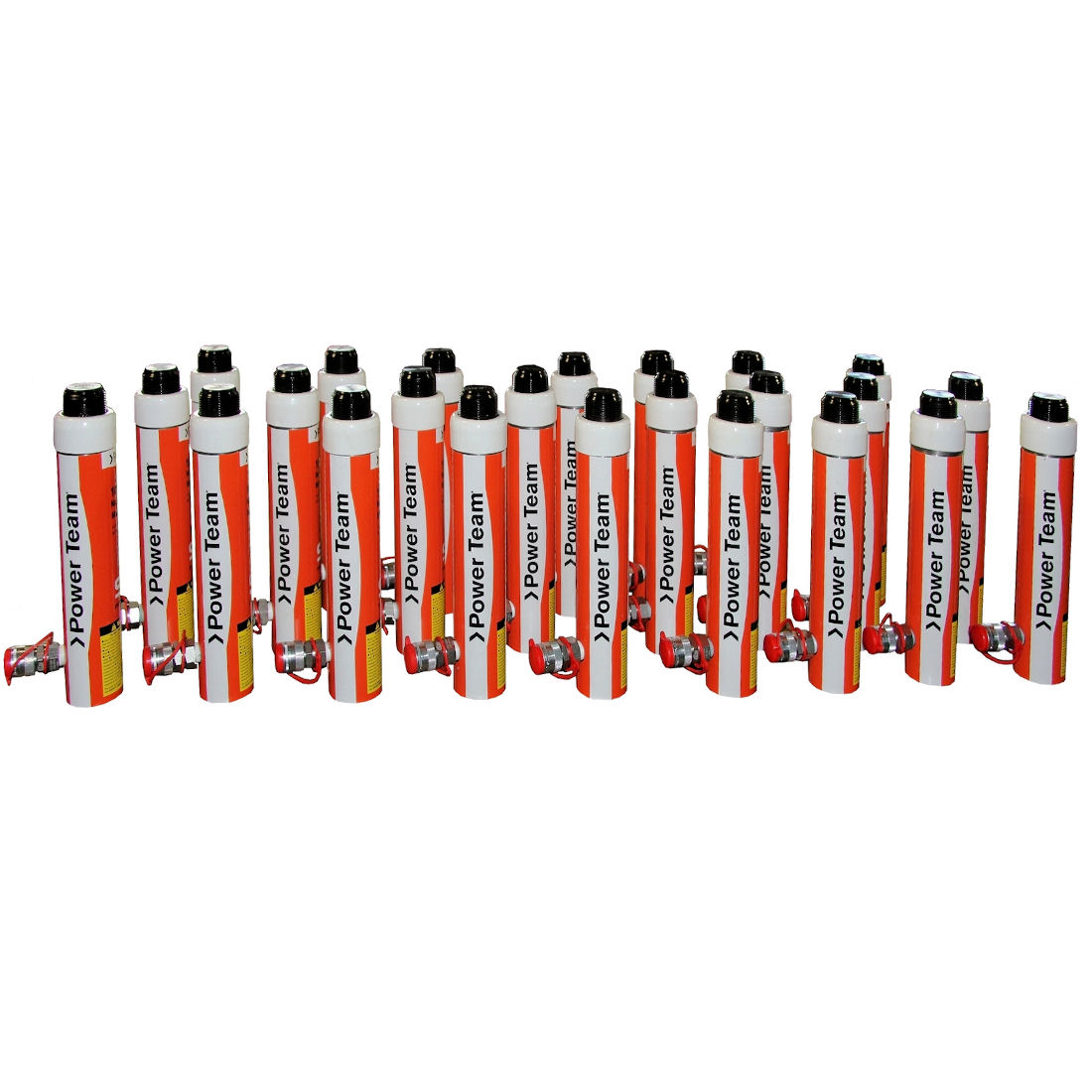

Power Team C106CBT 10T Capacity, Threaded Plunger Cylinders.

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

SPX  Power Team C106CBT Hydraulic Cylinders.

  • 10,000 p.s.i. maximum operating pressure.
  • Threaded rod end and butt end to accept attachments.
  • Single acting, spring return.
  • 10 Tons Force @8,945 p.s.i. (each).
  • 1-1/4″ N.P.T. male rod end.
  • 1-1/4″ N.P.T. female butt end.
  • 2-14″ Collar thread for fixture mounting.
  • 11.50″ Retracted length.
  • 6.13″ Stroke/travel.
  • 9796 Quick disconnect coupler standard on all models.
  • 20 Lbs. (Each).

This series of cylinders can be used in any position and easily accepts mounting  attachments for a variety of clamping, pushing and positioning applications
