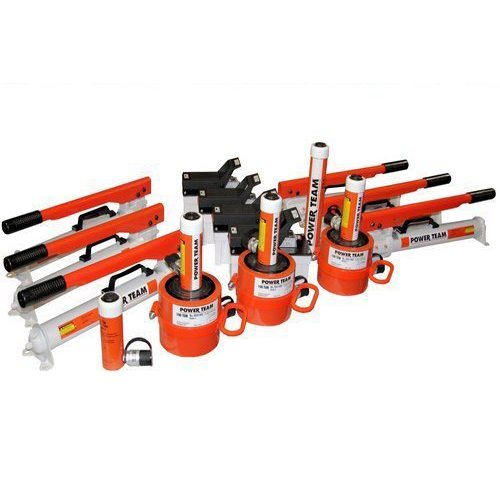

SPX Power Team C104C & RSS-1002 Cylinders
Inquire about SPX Power Team C104C & RSS-1002 Cylinders
Power Team C104C 10 Ton Hydraulic Cylinder.
- 10 Tons capacity @8,945 psi (Maximum pressure).
- Single acting, spring return.
- 6.75″ Collapsed height.
- 4.13″ Stroke/travel.
- 9796 Quick disconnect coupler is included and installed into the working port of each cylinder.
- Lightweight 6.7 Lbs.
Power Team RSS1002 Low Profile Hydraulic Jacking Cylinder.
- 98 Tons capacity @10,000 psi (Maximum pressure).
- Single acting, spring return
- 5.50″ Collapsed height.
- 2.25″ Stroke/travel.
- 9796 Quick disconnect coupler is included and installed into the working port of each cylinder.
- 47 Lbs.
Power Team PA-6 Air Hydraulic Pump.
- 40-120 psi input air pressure – 10,000 psi output hydraulic pressure.
- 105 cu.” oil reservoir.
- Compact design – 14 Lbs.
Power Team P-59 Hydraulic Hand Pump.
- Internal bypass relief valve – 10,000 psi Maximum pressure.
- 0.66 cu.”/stroke (1st Stage) 0.16 cu.”/stroke (2nd Stage).
- 45 cu.” useable oil volume.
- 17 Lbs.
With many standard and custom variations to choose from, Buffalo Hydraulic has the experience to provide the most cost effective and reliable hydraulic pump and cylinder combination to support your application.
