SPX Power Team High Tonnage Hydraulic Jacking Cylinders
Whether your project requires a single point of high tonnage lifting capacity or multiple points, the Power Team R Series of high tonnage hydraulic jacking cylinders provide a great variety of standard models to choose from.
Easily combined with many options through air/hydraulic and electric/hydraulic pumps, manifolds, fittings, gauges and high-pressure hose assemblies, Buffalo Hydraulic is glad to help with the design of your high tonnage project!
Inquire about SPX Power Team High Tonnage Hydraulic Jacking Cylinders
SPX Power Team High Tonnage Hydraulic Jacking Cylinders
- 10,000 psi Maximum pressure.
- Single acting, load return design.
- 20 Standard models 55-565 tons capacity.

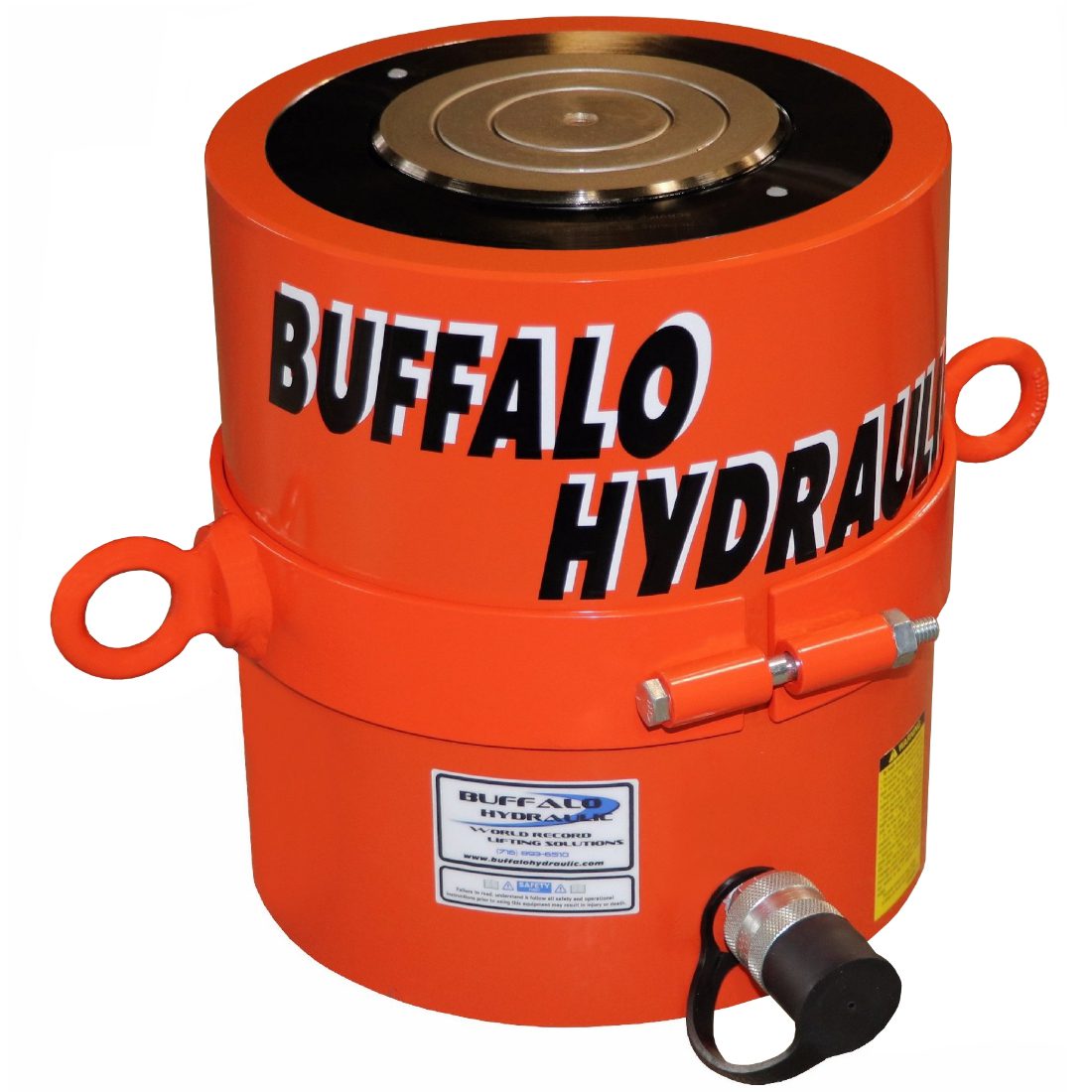

- R2806C (Shown).
- 283.t Tons force @10,000 psi.
- 11.50″ Retracted height.
- 6.00″ Stroke/travel
- 8.50″ Diameter internal bore.
- 10.88″ Outside diameter.
- 8.50″ Diameter piston.
- 300 lbs.
Related Products
Buffalo Hydraulic Custom Hydraulic Cylinders
Buffalo Hydraulic BHDAFLM4.00X2.00X24.00-SPL Rugged, flange mount, double-acting hydraulic cylinders. Ø4.00″ Internal bore. Ø2.25″ Chrome rod. Bronze piston & gland. 4,000 p.s.i. operating pressure. 24.00″ Stroke/travel.
Buffalo Hydraulic Custom Hydraulic Cylinders
Buffalo Hydraulic DA8.00X5.00X32-SPL, Custom, Hydraulic Cylinder. Double-acting with custom flange mount design. Ø8.00″ Bore. Ø5.00″ Chrome rod. 32.00″ Stroke. 175,000 lbs. force. Ø24″, 8-bolt flange for fixture...
BVA Hydraulics Hollow Plunger Jacking Cylinders
BVA Hydraulics HC Series of 10,000 psi, single acting, spring return, hollow plunger hydraulic cylinders are offered in 11 standard models ranging from 12-100 tons capacity. All BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed industry standard ASME B30.1.
Buffalo Hydraulic High Tonnage Hydraulic Jacking Cylinder
Buffalo Hydraulic DA10.0X38.5-SPL Hydraulic Cylinder. Double-acting, rugged design. 274,750 Maximum pressing force. Ø10.00″ Bore. 38.50″ Stroke/travel. Equipped with custom over-center load holding valve.
BVA Hydraulics – High Tonnage Hydraulic Jacking Cylinders
BVA Hydraulics H Series single-acting, spring return hydraulic cylinders are available in 42 different standard models ranging from 2 - 100 tons capacity with a 10,000 psi maximum pressure rating.
SPX Power Team Lock Nut Hydraulic Cylinders
Power Team R1002L Locking Collar Hydraulic Cylinder. Single acting, load return. Engineered locking collar nut. 100 Tons force @9,694 p.s.i. 7.25″ Minimum height. 2.00″ Stroke/Travel. Shown with optional 5° tilt...
Buffalo Hydraulic Custom Lock Nut Hydraulic Cylinders
Buffalo Hydraulic SALN60X24-SPL Hollow Plunger, Lock Nut Cylinders. 65 Tons force each @10,000 p.s.i. Single-acting, through-hole design. 37.25″ Retracted height. 24.00″ Stroke. Ø2.50″ Through hole. Equipped...
SPX Power Team C104C & RSS-1002 Cylinders
Power Team C104C 10 Ton Hydraulic Cylinder. 10 Tons capacity @8,945 psi (Maximum pressure). Single acting, spring return. 6.75″ Collapsed height. 4.13″ Stroke/travel. 9796 Quick...
Power Team R1502 High-Tonnage, Hydraulic Jacking Cylinder
Power Team R1502 Hydraulic Jacking Cylinder. 10,000 psi Maximum operating pressure. 300,000 lbs. Capacity (150 T) @9,778 p.s.i. Single-acting, high-cycle design. 7.06″ Minimum height. 2.00″ Stroke/Travel....
SPX Power Team R1002D High Tonnage Cylinders
Power Team R1002D Hydraulic Cylinder. Double acting design. 100 Tons force @9,695 p.s.i. 6.64″ Minimum height. 2.00″ Stroke/Travel. 54 Lbs.
