SPX Power Team RL Series, Locking Collar, Hydraulic Cylinders.

• 10,000 p.s.i. Maximum input pressure.
• 55 – 565 Tons capacity models.
• 2.00 – 10.00″ Stroke.
• Single acting, load return design.
• Swivel, tilt saddle load caps available to help reduce side loading effects.
• Engineered threaded plunger and mating lock nut maintain load even without hydraulic pressure present.
• 9796 Quick disconnect coupler included with all models.

As the plunger rises, screwing the plunger lock nut down – against the cylinder body creates mechanical cribbing.

This style of  jacking cylinder can easily be incorporated into a multi point system and will provide a great deal of added safety due to the lock nut design. Combined with a Power Team 9596 manually operated, load holding check valve as shown prevents a potential loss of cylinder pressure during the lifting process.

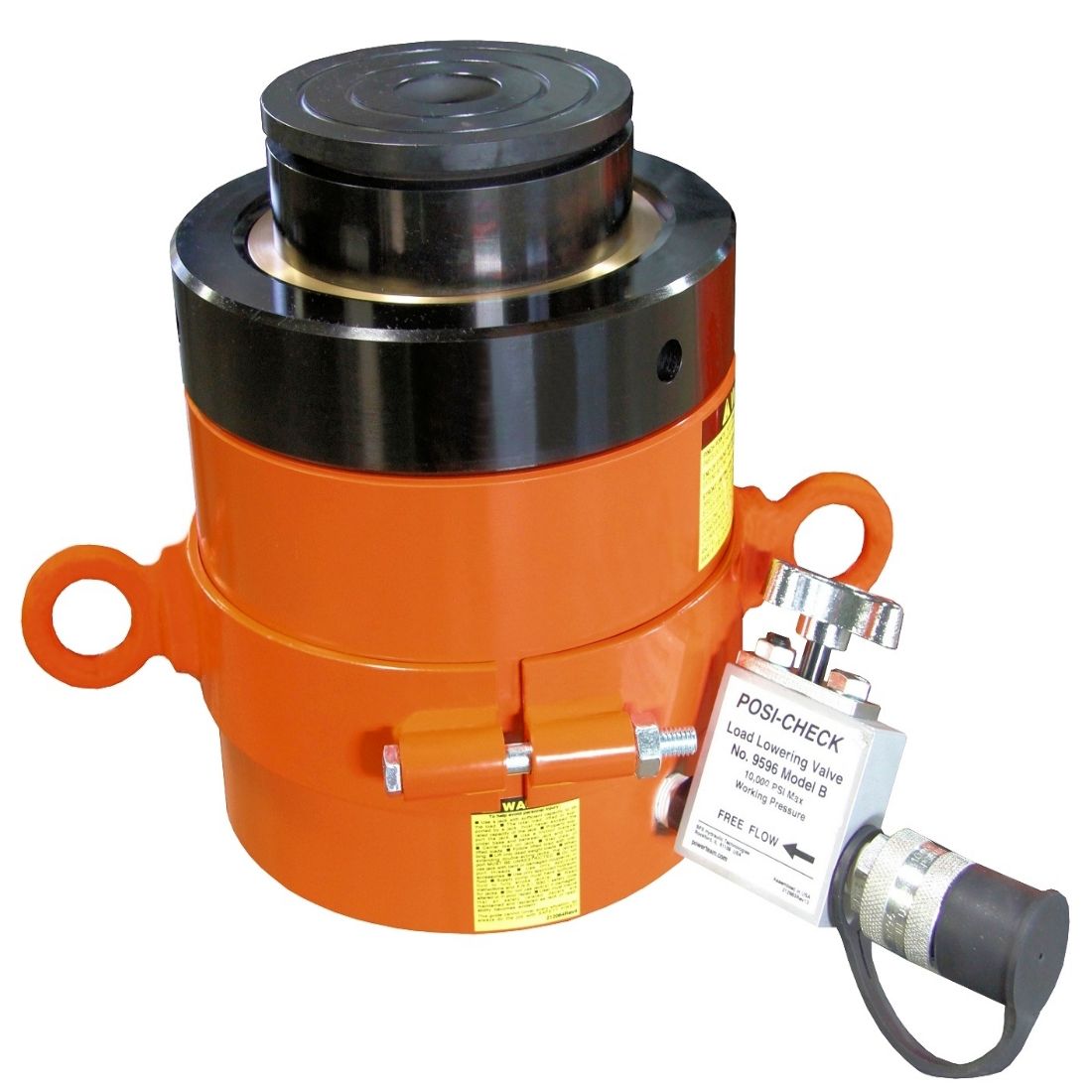

Model R2002L – 200 tons capacity with 2.00″ of stroke/travel pictured.
