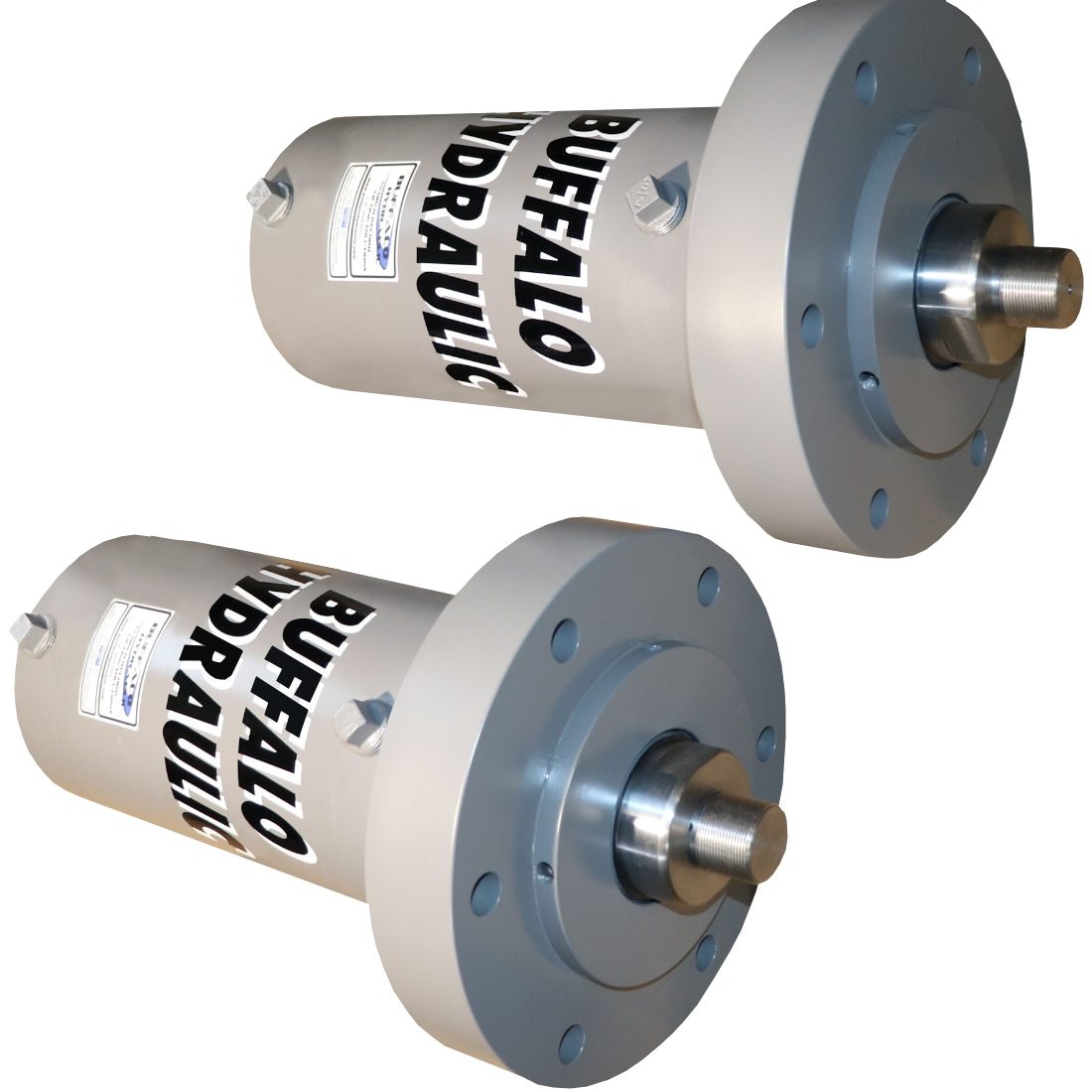

Buffalo Hydraulic Custom-Design, Double-Acting, Flange Mount Pressing Cylinders
Inquire about Buffalo Hydraulic Custom-Design, Double-Acting, Flange Mount Pressing Cylinders
Buffalo Hydraulic Custom-Design, Double-Acting, Flange Mount Pressing Cylinders
- 3,00 psi maximum pressure.
- Double-acting, flange-mount design.
- 84,823 lbs. (42.4T) each at 3,000 p.s.i.
- ø6.00″ Internal bore.
- ø3.00″ Industrial chrome plunger.
- ø2.00″, 12 Threaded rod end.
- 10.00″ Stroke/travel.
- Custom design, 6-bolt, rod-end mounting flange.
From a prototype design to production, Buffalo Hydraulic has the experience needed to design a custom hydraulic cylinder to meet your critical project requirements.
