Buffalo Hydraulic Custom Mount, Double-Acting, Hydraulic Cylinders

From single-acting, double-acting, pulling, pressing, through-hole design and prototype to production, Buffalo Hydraulic has 1,000’s of standard hydraulic cylinders to choose from and the ability to work through your most unique custom design.  AutoCAD dimensioned, approval drawings are generated and submitted to clarify all aspects of the design.

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

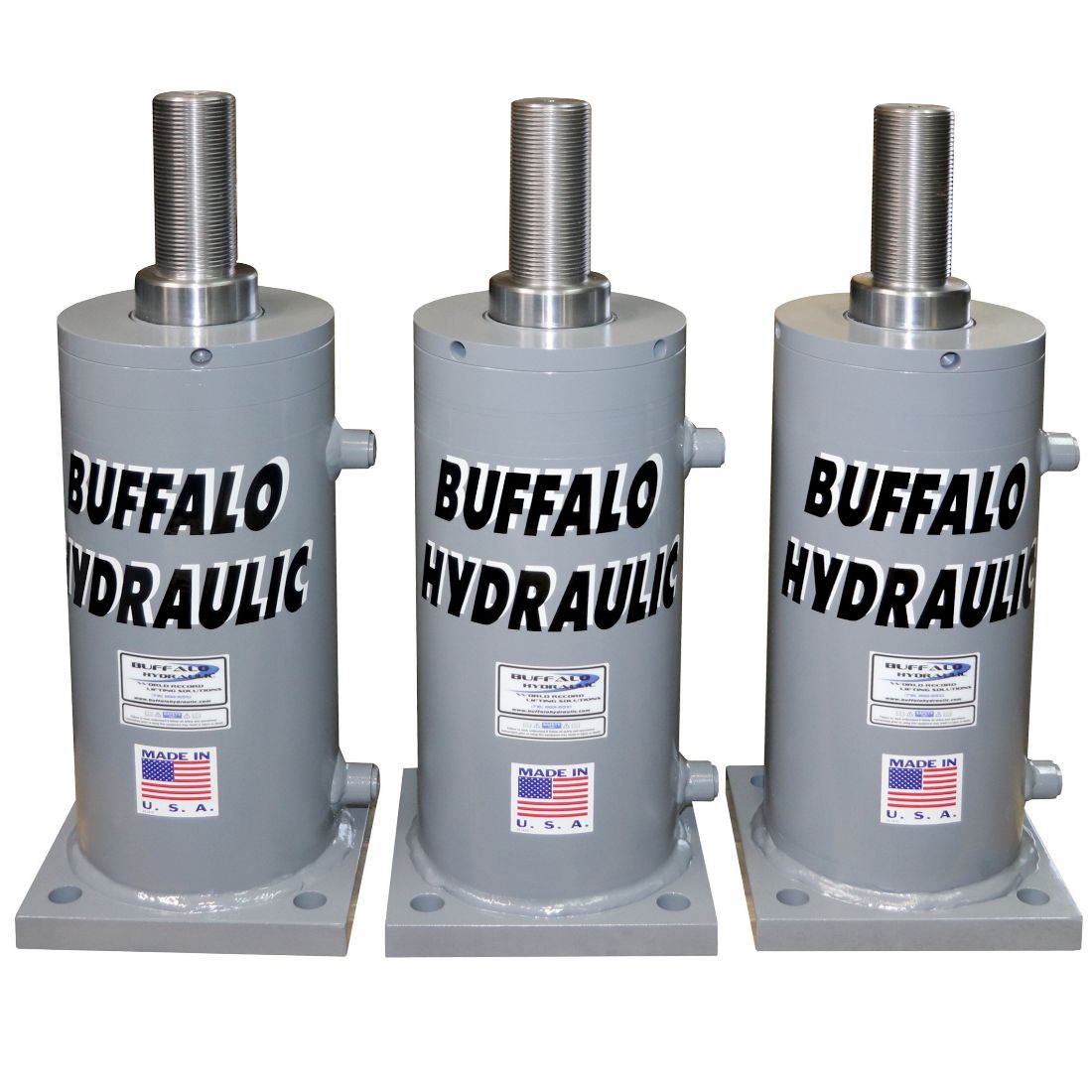

Buffalo Hydraulic Custom Mount, Double-Acting, Hydraulic Cylinders

  • Custom-designed, base end flange mount – BHDA6.00X3.00-6.25-SPL.
  • Double acting – 3,000 p.s.i. maximum operating pressure.
  • 6.00″ Diameter precision-honed bore.
  • 3.00″ diameter chrome rod with 2.00″, 8 X 5.00″L male thread.
  • 6.25″ stroke/travel.
  • Base end square flange mount.
