Six pressing points offering 10.00″ of stroke/travel.
10,000 Lbs. force at each point.
Three moveable stations allow precision placement over 120″.

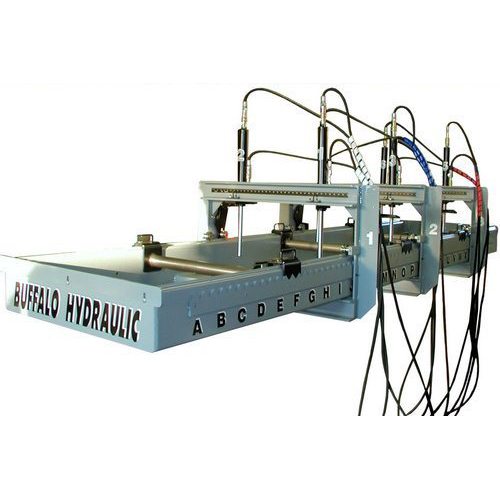

Providing six locations of independently controlled pressing points were required to straighten large weldments. Extremely tight tolerance was needed on the completed weldment after straightening. Creating a custom horizontal hydraulic press that also allowed the operator to move the (3) pressing sub frames along the main axis accomplished the operation smoothly, safely and efficiently.
Whether you require a complex pressing solution over six contact points, a simple bench top design or anything in between, Buffalo Hydraulic can offer a solution to meet your exact hydraulic pressing needs.
