BVA Hydraulics Custom-Design, High-Tonnage, Hydraulic Jacking System
Confidence Built on Quality
ASME B30.1
ANSI B40.1
SAE 100
BVA Hydraulics products are manufactured through an International Quality Assurance System, ISO 9001 which
involves consistent observation of administration, management, manufacturing, and production control.
Under this system, the related operations are monitored in all aspects from the purchase order to the
assembly line and through to shipping the order.
The cylinders comply with load testing requirements and/or the safety factor for material yield strength
while still functioning properly without oil leakage.
BVA Hydraulics pressure gauges meet the criteria for grade A.
BVA Hydraulics hydraulic hoses comply with the Material Handling Institute’s specification of minimum life cycles
and minimum burst pressure rating.
Products comply with the industry standards defined by
ISO 9001
Inquire about BVA Hydraulics Custom-Design, High-Tonnage, Hydraulic Jacking System

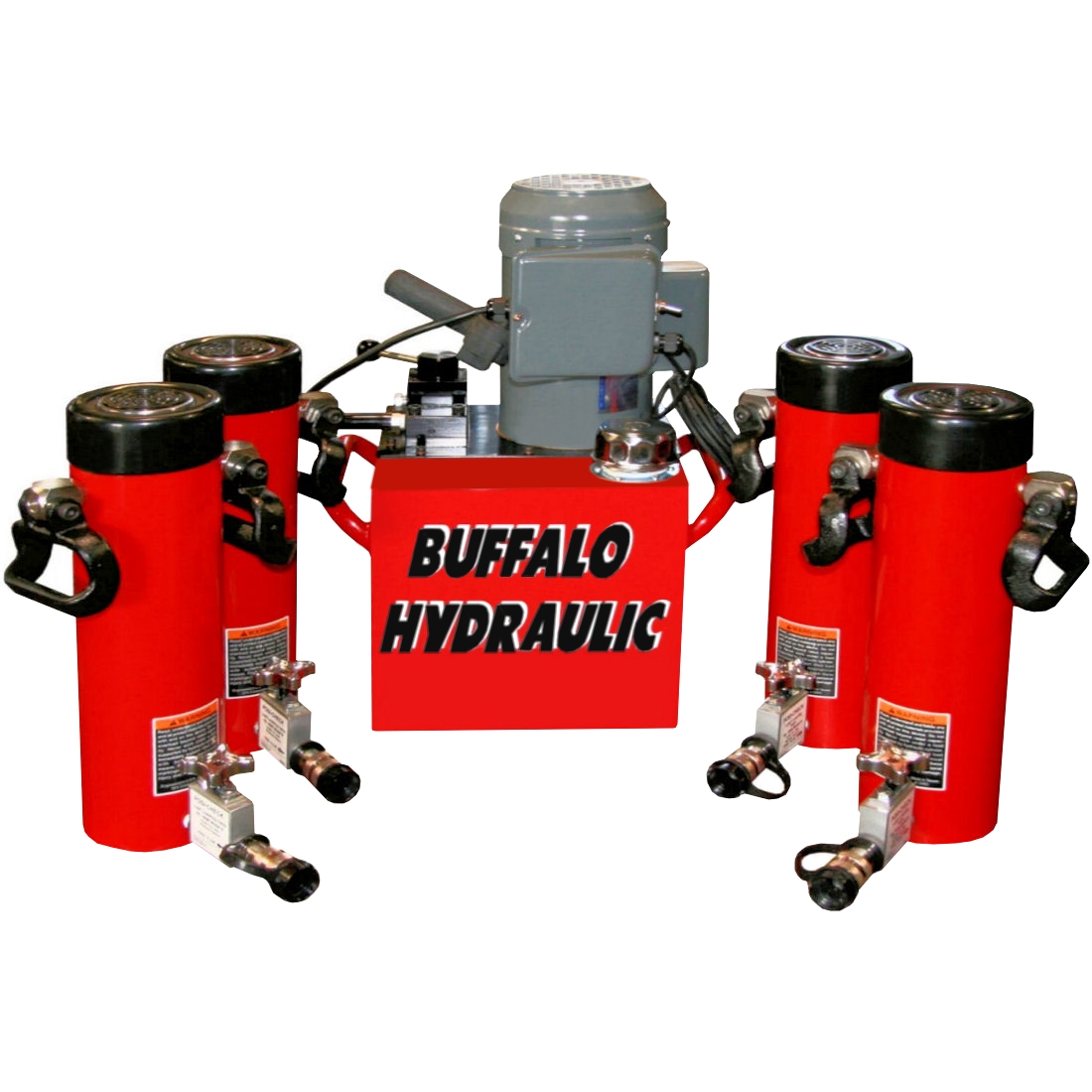

BVA Hydraulics Custom-Design, High-Tonnage, Hydraulic Jacking System
- 10,000 psi operating pressure.
- 115 VAC, 1 Ph., 60 Hz.
- High flow, 2-stage design.
- 475 cu.” of oil per minute at 700 psi (1st stage).
- 60 cu.” of oil per minute at 10,000 psi (2nd stage).
- Internal, preset pressure relief valve.
- 3-way, 3-position (Advance-Hold-Retract) manually operated directional valve.
- 100 tons lifting capacity at 9,718 psi – each (200T combined force).
- Single-acting, spring return jacking cylinders.
- 10.24″ stroke.
- Equipped with (4) manually operated, load-holding check valves.
