BVA Hydraulics HLN15004 – HLN15006 Lock-Nut Jacking Cylinders
Buffalo Hydraulic proudly serves as a factory-authorized stocking distributor and a factory-authorized warranty/service center for all BVA Hydraulics products.
ISO 9001 Quality Assurance
BVA Hydraulics products are manufactured through an International Quality Assurance System, ISO 9001 which involves consistent observation of administration, management, manufacturing, and production control. Under this system, the related operations are monitored on all aspects from the purchase order to the assembly line and through to shipping the order.
BVA Limited Lifetime Warranty
All BVA Hydraulics products are warranted to be free of defects in materials and workmanship. Any BVA product that does not conform to specification will be repaired or credited (at BVA’s option) at BVA’s expense for the life of the product. Contact BVA or Buffalo Hydraulic for the disposition of this warranty.
This warranty does not cover ordinary wear and tear, abuse, misuse, alteration, or use of improper fluids or maintenance as determined by BVA and its authorized service centers. All electric motors, gas engines, batteries, and other parts or materials sold with or as part of BVA products but are separately warranted by another manufacturer, are covered by that manufacturer’s warranty and not the BVA Lifetime Warranty. BVA shall not be liable for consequential or incidental damage or loss.
Inquire about BVA Hydraulics HLN15004 – HLN15006 Lock-Nut Jacking Cylinders

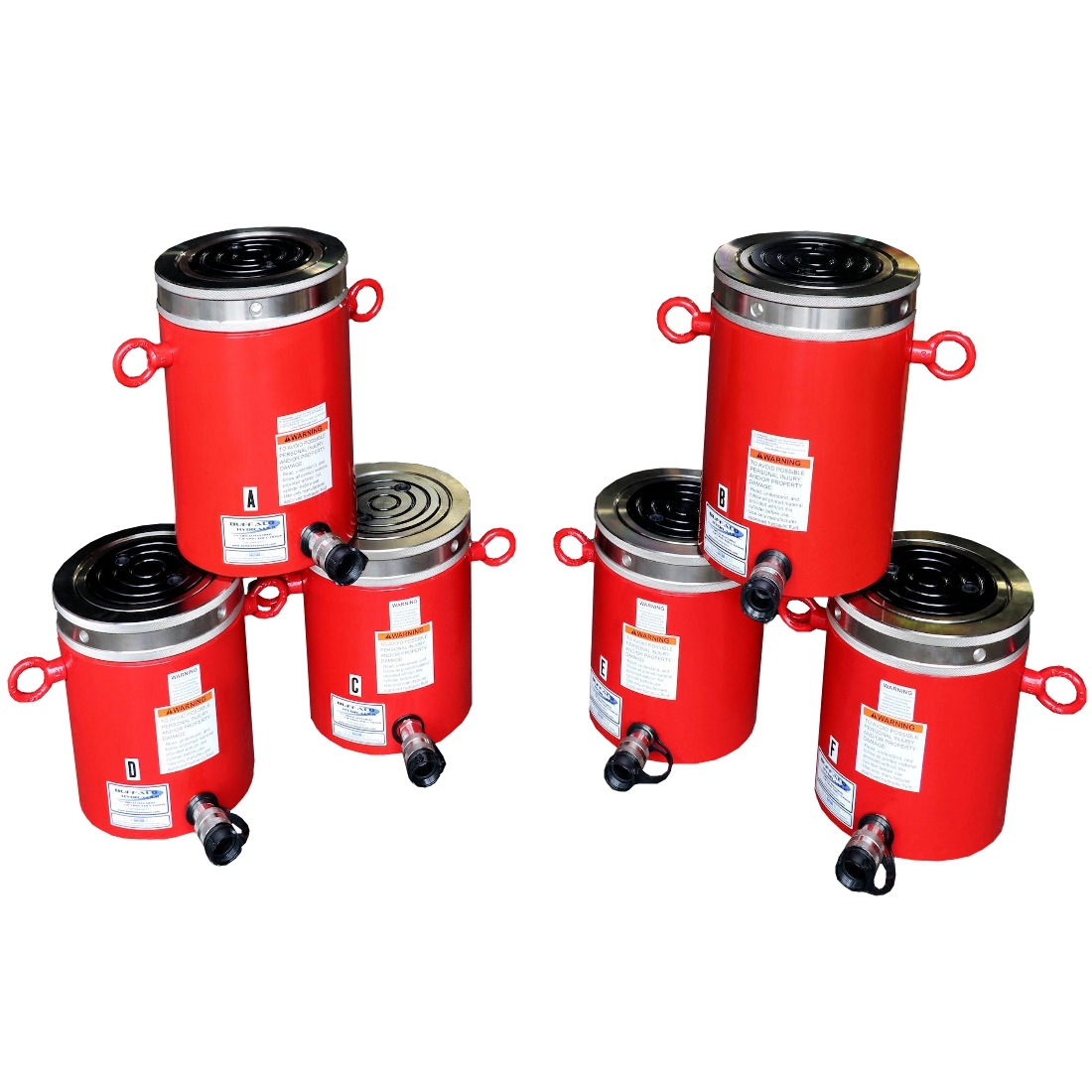

BVA Hydraulics HLN15004 & HLN15006, 150T Lock-Nut Jacking Cylinders
- 10,000 psi maximum pressure.
- Single-acting, load return, lock-nut design.
- Engineered, mating lock-nut creates mechanical load holding.
- 311,600 lbs. (155.8T) capacity each @10,000 psi.
- Ø 8.07″ Cylinder body outside diameter.
- 10.20″ Retracted height – HLN15004.
- 3.94″ Stroke/travel – HLN15004.
- 145 lbs. each – HLN15004.
- 12.17″ Retracted height – HLN15006.
- 5.91″ Stroke/travel – HLN15006.
- 174 lbs. each – HLN15006.
- CH38F quick disconnect coupler included with all HLN models.
- 30 Standard models ranging from 55 – 300, with 500 tons capacity on custom applications make up this series of BVA Hydraulics, high-tonnage, lock-nut design, hydraulic jacking cylinders.
