Power Team High Tonnage, Double-Acting Jacking Cylinders

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

Power Team High Tonnage, Double-Acting Jacking Cylinders

  • 10,000 psi Maximum operating pressure.
  • Double-acting design.
  • 23 Standard models ranging from 10 – 500 tons capacity (Advance).
  • Built-in rod end relief valve on all RD models.

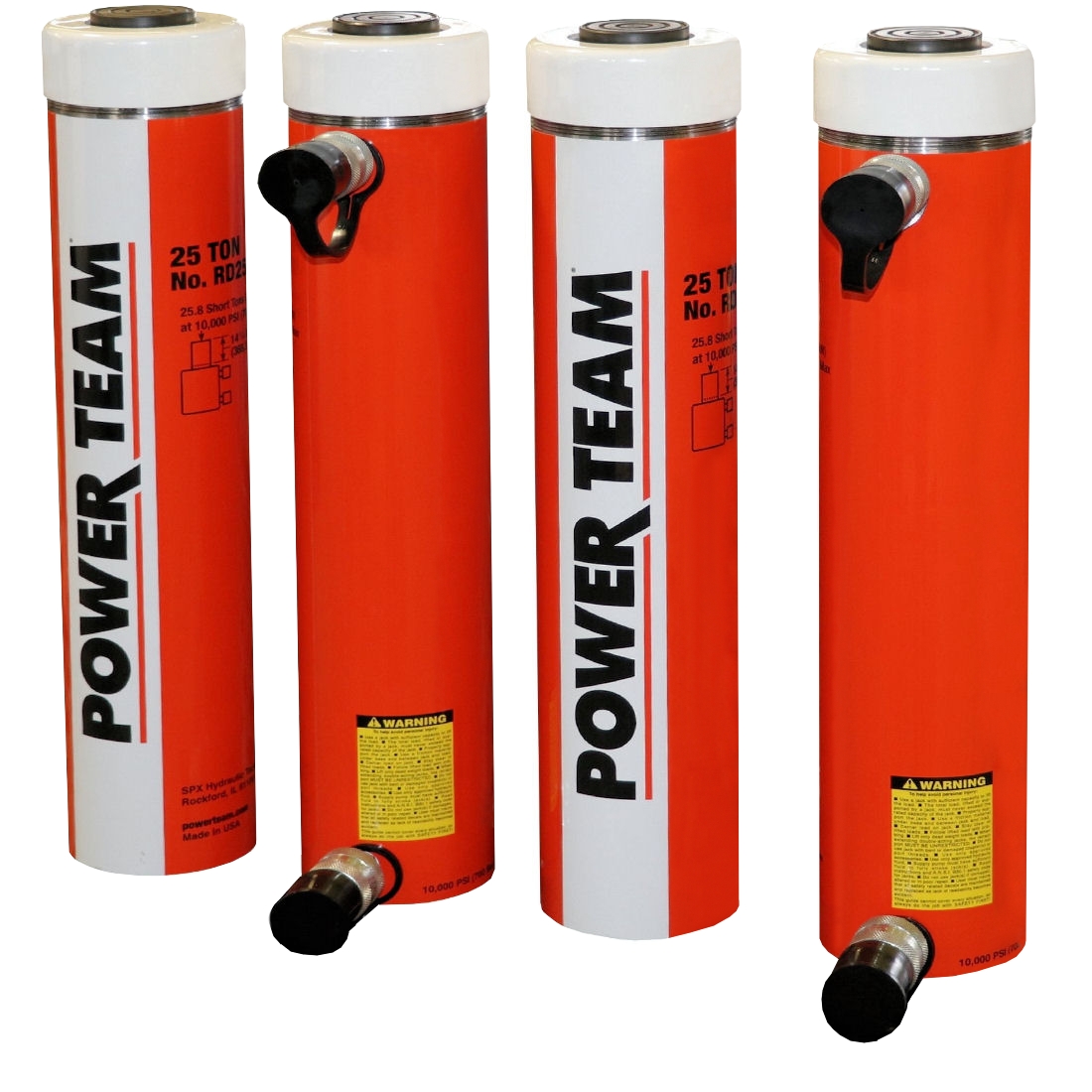

  • RD2514 shown.
  • 51,500 lbs. force @10,000 psi – Advance.
  • 16,100 lbs. force @10,000 psi – Retract.
  • 4.00″ Outside diameter.
  • 4.00″, 12 X 1.63″ long engineered, rod end collar thread.
  • ø2.13″ Chrome rod.
  • 1.50″, 16 X 1.00″ deep female plunger thread.
  • Four 0.50″, 13 X 0.75″ deep threaded base mounting holes are included on a 2.75″ diameter bolt circle.
  • Advance and Retract quick disconnect coupler included on all RD models.
  • All models meet ANSI ASME B30 .1 Standards
