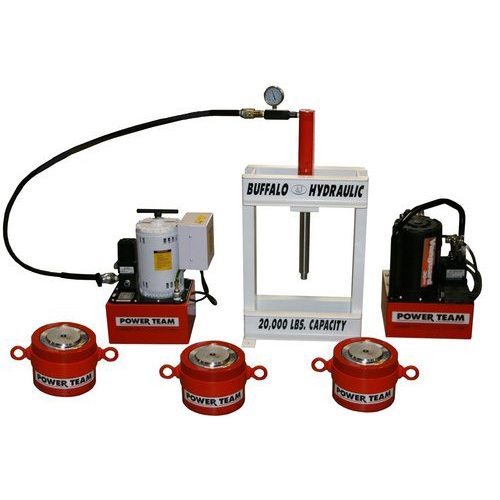

SPX Power Team High Pressure – High Tonnage Hydraulic Systems

PE462S Electric Hydraulic Pump

• 115 VAC, 1 Ph., 60 Hz.
• 2 Stage Design
• 2 Position, Solenoid Operated Directional Valve.
• Hand held Push Button Pendant Control.
• 2 1/2 Gallons Reservoir.

R1502C Hydraulic Jacking Cylinders

• 153.40 Tons Capacity (460.20 Total).
• 6.38″ Collapsed Height.
• 2.00″ Stroke/Travel.
• 92 Lbs. Each.

PE302-SPL Electric Hydraulic Pump

• 115 VAC, 1 Ph., 60 Hz.
• 30 Cu.” Per Minute.
• Pressure Compensated Directional Valve.
• 1.2 Gallons Reservoir.

BHHP-10X10-SPL H-Frame Hydraulic Press

• 10 tons Capacity.
• Single Acting – Spring Return.
• 10.00″ Stroke/Travel.
• 18.00″ Horizontal Opening.
• 20.00″ Vertical Opening.
