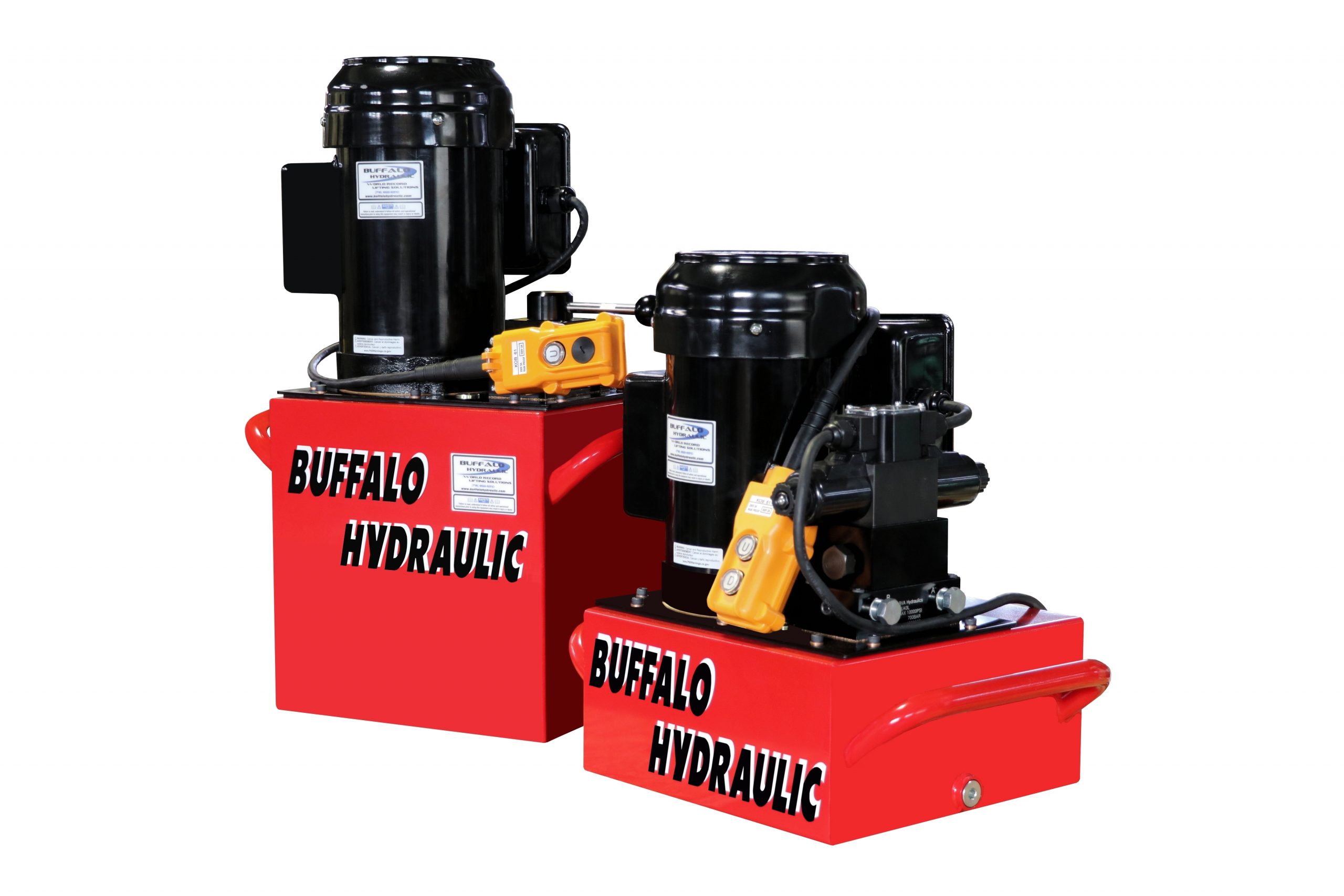

BVA Hydraulics – PE50W4N05A 10,000 p.s.i. Electric Hydraulic Pumps

From a simple electric hydraulic pump with a 1 gallons reservoir and a manually operated directional valve to a complex, high flow, foot switch control, solenoid operated directional valve equipped with a 25 gallons reservoir, industrial casters, and a pressure switch option, the PE30, PE40, and PE 50 Series of 10,000 psi electric hydraulic pumps from BVA offers an endless variety to meet your demanding application requirements.  All models are a 2-stage design, are equipped with an internal 10,000 psi relief valve, and start under full load.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics PE50 Series 10,000 p.s.i. Electric-Hydraulic Pumps

  • 10,000 p.s.i. Maximum operating pressure.
  • Modular platform allows for easy customization.
  • Manual and solenoid-operated directional valve options.
  • .5 – 1.5 Hp.
  • 1-25 gallons oil reservoir volume to properly accommodate for cylinder volume.
  • Whisper quiet 80dBA operation.
  • Two-stage design provides a fast & efficient first stage in meeting load.
  • High-quality suction strainers to prevent contamination and pump damage.
  • 120 VAC, 240 VAC, 1 Ph. in 50 & 60 Hz. versions available.
  • 100% Duty cycle, NEMA 5 enclosure, TEFC electric motors.
  • 24 VAC pendant controls for added safety.
  • All units start under full load – No need to dump pressure before building to a higher value.
