BVA Hydraulics High Tonnage Hydraulic Jacking Cylinders
BVA Hydraulics single acting, spring return, H-Series, high tonnage, hydraulic jacking cylinders are offered in a wide variety of (42) standard models ranging from 2-100 tons capacity. These 10,000 psi hydraulic cylinders can be used in a horizontal, inverted, or upright position. Base mounting holes, engineered collar threads to withstand full force, and plunger mounting holes allow fixturing to meet your needs in an easy task. Incorporating this family of BVA Hydraulics Jacking Cylinders into the design of a high tonnage hydraulic jacking system to provide one point of lift, or several will offer a rugged and safe means to your most demanding project.
All BVA Hydraulics hydraulic cylinders are designed, built, and tested to meet or exceed ASME B30.1 standards and are backed by BVA’s Limited Lifetime Warranty.
Buffalo Hydraulic is proud to serve as a large-volume Factory Authorized Stocking Distributor, and Factory Authorized Warranty/Service Center for all BVA Hydraulics products. This, combined with over 80 years of high-pressure/high-tonnage hydraulic experience provides a strong partnership, and together, we’re glad to support you in your technical needs.
Inquire about BVA Hydraulics High Tonnage Hydraulic Jacking Cylinders

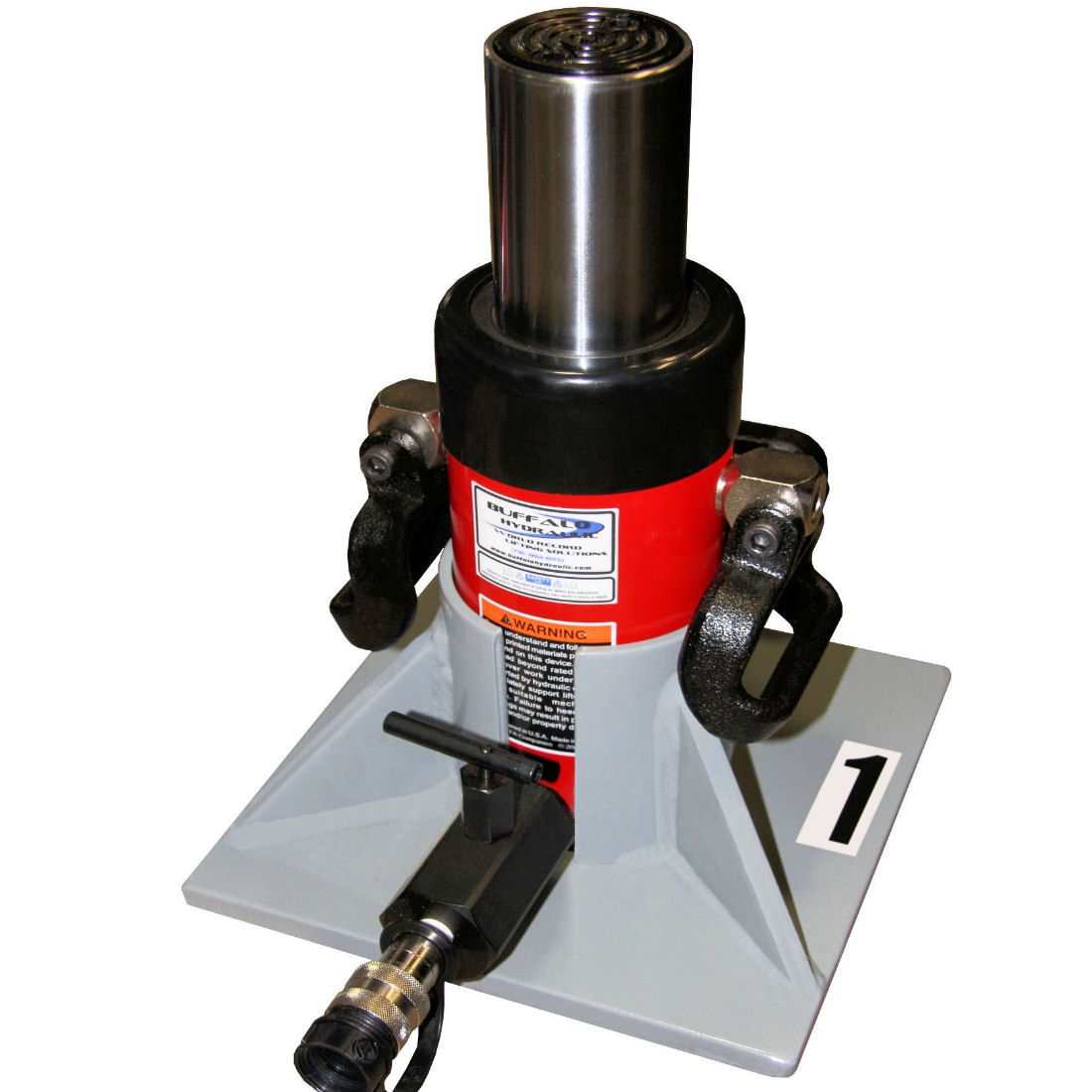

BVA Hydraulics H1006 High Tonnage, Hydraulic Jacking Cylinders.
- 205,800 Lbs. Force(102.9T) capacity – each @10,000 p.s.i.
- Single-acting, spring return design.
- 14.56″ Minimum height including custom support base assembly.
- 6.61″ Stroke/travel.
- 155 Lbs. each.
Shown, equipped with a manually operated, load holding check valve and custom design base support platform.
Related Products
BVA Hydraulics – HLN15002 High-Tonnage, Lock-Nut Cylinders
Is where your hydraulic components come from important to you?
In a time when leading competitors are increasingly outsourcing to China, BVA Hydraulics is proud to have the unique advantage of owning and operating their high-pressure hydraulics manufacturing plant in Taiwan since 1971 - Nearly 45 years now! Taiwanese manufacturing is known worldwide as being among the highest of modern quality, putting the country on the short list of TAA-compliant regions. BVA Hydraulics' ability to eliminate the middleman to source raw materials with supply chain stability sets them above other high-pressure hydraulics manufacturers. This, along with nearly 100,000 square feet of office, warehouse, testing facilities, and product showrooms in Kansas City Missouri provides a perfect combination!Brand Loyalty Versus Quality Control
It's easy to fall back on the old standby, but when you are given the option of greater control over your orders from raw material sourcing to drop shipping directly to a job site, the choice is clear. Every step of the way, BVA Hydraulics provides personal care in everything from testing their product up to 10,000 cycles and giving flexibility of customization on orders. Choosing a high-pressure hydraulics supplier doesn't have to be complicated. BVA Hydraulics offers as much value as possible to ensure safety and reliability through all of its products. As a Factory Authorized Distributor and Warranty/Service Center, and with nearly 80 years of high-pressure, high-tonnage hydraulic experience, Buffalo Hydraulic is proud to partner with BVA Hydraulics in this way to serve your needs.
BVA Hydraulics High-Tonnage Hydraulic Jacking Cylinders
BVA Hydraulics offers over 280 standard 10,000 psi hydraulic cylinders in lightweight aluminum, hollow plunger, single-acting - load return, single-acting - spring return, double-acting, pull, and load holding lock-nut cylinders with a range from 2 - 1,000 tons capacity. All BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed industry standard ASMEB30.1.
BVA Hydraulics High Tonnage Hydraulic Jacking Cylinders
BVA Hydraulics H Series of 10,000 psi, single acting, spring return hydraulic cylinders are offered in 42 standard models ranging from 5-100 tons capacity. All BVA Hydraulics products are manufactured through ISO 9001 strict compliance and all BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed industry standard ASME B30.1.
Buffalo Hydraulic Custom Low Profile Jacking Cylinders
Buffalo Hydraulic LS30DR-SPL Hydraulic Load Cell. 30 Tons capacity. Low height, compact design. Custom base support. Certified pressure gauge traceable to The Bureau of Weights...
BVA Hydraulics High Tonnage Hydraulic Cylinders
Buffalo Hydraulic proudly serves as a Factory Authorized Stocking Distributor as well as a Factory Authorized Warranty/Service Center for all BVA Hydraulics products.
ISO 9001 Quality Assurance
BVA Hydraulics products are manufactured through an International Quality Assurance System, ISO 9001 which involves consistent observation of administration, management, manufacturing, and production control. Under this system, the related operations are monitored on all aspects from the purchase order to the assembly line and through to shipping the order.
BVA Limited Lifetime Warranty
All BVA Hydraulics products are warranted to be free of defects in materials and workmanship. Any BVA product that does not conform to specification will be repaired or credited (at BVA’s option) at BVA’s expense for the life of the product. Contact BVA or Buffalo Hydraulic for the disposition of this warranty.
This warranty does not cover ordinary wear and tear, abuse, misuse, alteration, or use of improper fluids or maintenance as determined by BVA and its authorized service centers. All electric motors, gas engines, batteries, and other parts or materials sold with or as part of BVA products but are separately warranted by another manufacturer, are covered by that manufacturer’s warranty and not the BVA Lifetime Warranty. BVA shall not be liable for consequential or incidental damage or loss.
BVA Hydraulics – High Tonnage Hydraulic Jacking Cylinders
BVA Hydraulics H Series single-acting, spring return hydraulic cylinders are available in 42 different standard models ranging from 2 - 100 tons capacity with a 10,000 psi maximum pressure rating.
Buffalo Hydraulic Custom Hydraulic Cylinders
Buffalo Hydraulic DA8.00X5.00X32-SPL, Custom, Hydraulic Cylinder. Double-acting with custom flange mount design. Ø8.00″ Bore. Ø5.00″ Chrome rod. 32.00″ Stroke. 175,000 lbs. force. Ø24″, 8-bolt flange for fixture...
Buffalo Hydraulic Custom Hydraulic Cylinders
Buffalo Hydraulic BHDAFLM4.00X2.00X24.00-SPL Rugged, flange mount, double-acting hydraulic cylinders. Ø4.00″ Internal bore. Ø2.25″ Chrome rod. Bronze piston & gland. 4,000 p.s.i. operating pressure. 24.00″ Stroke/travel.
Buffalo Hydraulic Custom Large Bore Hydraulic Cylinders
Buffalo Hydraulic DA300X36-SPL Custom Hydraulic Cylinder. Double-acting, rugged tie-rod design. Ø10.00″ Bore. Ø6.00″ Chrome rod. 8.00″ Stroke/travel. Equipped with custom rod end flange for mounting. From...
Buffalo Hydraulic Custom Hydraulic Press Cylinders
Buffalo Hydraulic DA500X40-FLMSPL Hydraulic Press Cylinder. Double-acting, high cycle, flange mount design. 500 Tons pressing force @10,000 p.s.i. 36.00″ X 36.00″ X 8.00″ Custom rod...
