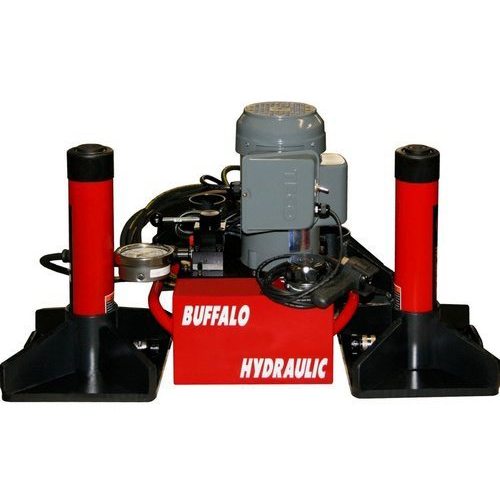

BVA Hydraulics High Tonnage Hydraulic Jacking Systems
BVA Hydraulics H Series single-acting, spring return jacking cylinders are offered in 42 standard models ranging from 2 – 100 tons capacity.
Inquire about BVA Hydraulics High Tonnage Hydraulic Jacking Systems
BVA Hydraulics High Tonnage Hydraulic Jacking Systems
- 10,000 psi operating pressure.
- 115 VAC, 1 Ph., 60 Hz.
- High flow, 2-stage design.
- 475 cu.” of oil per minute at 700 psi (1st stage).
- 60 cu.” of oil per minute at 10,000 psi (2nd stage).
- Internal, preset pressure relief valve.
- 3-way, 3-position (Advance-Hold-Retract) manually operated directional valve.
- 25 tons lifting capacity at 9,709 psi – each (50T combined force).
- Single-acting, spring return jacking cylinders.
- 12.20″ stroke.
- Equipped with custom bases and manually operated, load-holding check valves.
