BVA Hydraulics Low Profile, High Tonnage Jacking Cylinders

BVA Hydraulics HL Series of low-profile hydraulic cylinders are offered in (6) standard models ranging from 10 – 100 tons capacity.  This low profile design is single-acting, spring return, and can be used in any position (i.e. horizontal, inverted, and upright).

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics Low Profile, High Tonnage Jacking Cylinders

  • 10,000 psi maximum pressure.
  • Low profile, single acting, spring return design.
  • Industrial hard chrome plunger to resist pitting and scoring.
  • High flow, CH38F quick disconnect coupler included on all HL models.

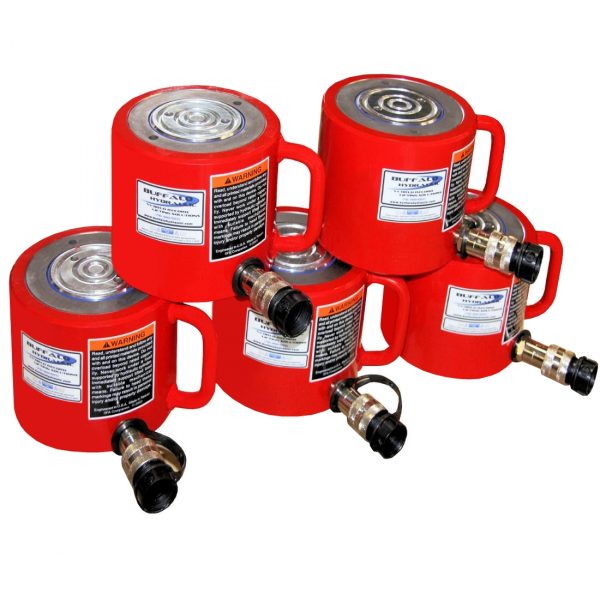

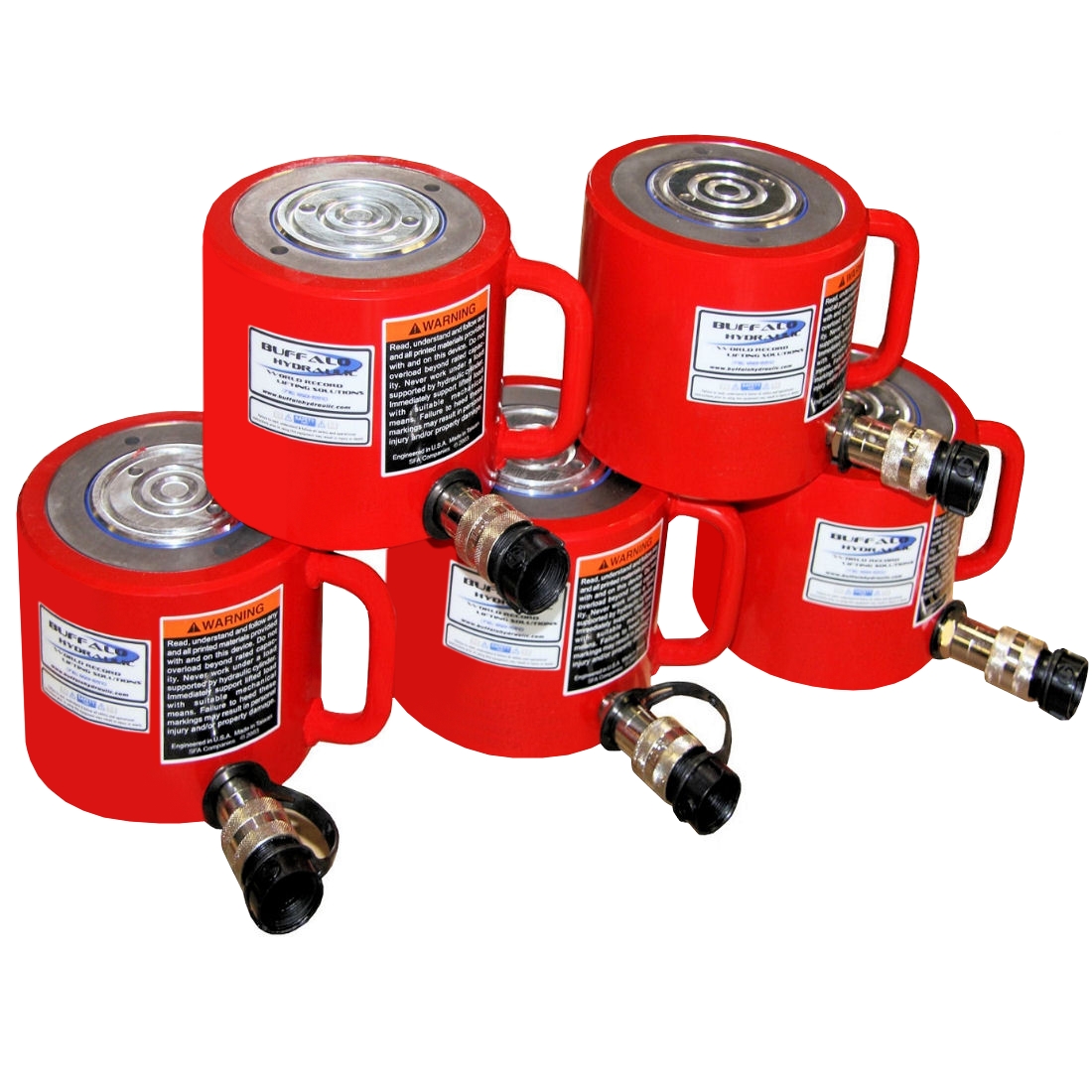

  • HL10002 Model shown
  • 196,400 lbs. force (98.2T) each at 10,000 psi.
  • 5.55″ Retracted height.
  • 2.24″ Stroke.
  • 45.4 lbs. each.
