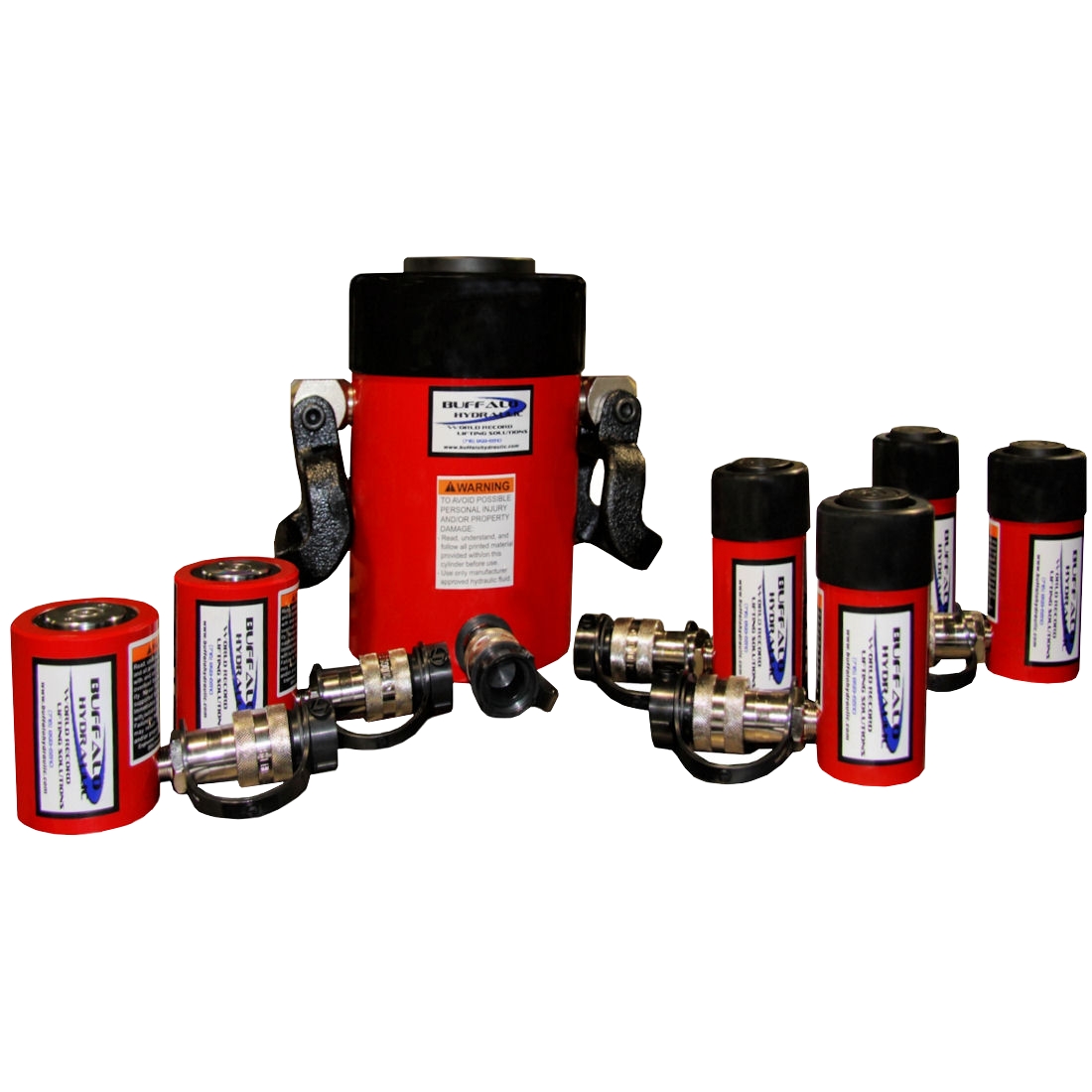

BVA Hydraulics High-Tonnage Hydraulic Jacking Cylinders

BVA Hydraulics offers over 280 standard 10,000 psi hydraulic cylinders in lightweight aluminum, hollow plunger, single-acting – load return, single-acting – spring return, double-acting, pull, and load holding lock-nut cylinders with a range from 2 – 1,000 tons capacity.

All BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed industry standard ASMEB30.1.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics H1002 Hydraulic Cylinder.

  • 10 Tons capacity @8,928 p.s.i.
  • 4.84″ Collapsed height.
  • 2.01″ Stroke/travel.
  • Single acting, spring return.
  • 5 Lbs.

BVA Hydraulics HL1001 Low Profile Hydraulic Cylinder.

  • 10 Tons capacity @8,511 p.s.i.
  • 3.48″ Collapsed height.
  • 1.50″ Stroke/travel.
  • Single acting, spring return.
  • 5.7 Lbs.

BVA Hydraulics HC6003T Hollow Plunger Hydraulic Cylinder.

  • 60 Tons capacity @9.195 p.s.i. (Maximum Pressure).
  • 9.77″ Collapsed height.
  • 3.00″ Stroke/travel.
  • Single acting, spring return.
  • Large Ø2.13″ through hole.
  • High force tensioning & through hole pulling applications.
  • 65.7 Lbs.
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “BVA Hydraulics High-Tonnage Hydraulic Jacking Cylinders”

Related Products

Buffalo Hydraulic Custom Low Profile Jacking Cylinders

Buffalo Hydraulic LS30DR-SPL Hydraulic Load Cell. 30 Tons capacity. Low height, compact design. Custom base support. Certified pressure gauge traceable to The Bureau of Weights...
custom hydraulic cylinders
custom hydraulic cylinders

Buffalo Hydraulic Custom Hydraulic Cylinders

Buffalo Hydraulic BHDA5.00X2.50-50-SPL. Custom design, double-acting hydraulic cylinder. Ø5.00″  Bore. Ø2.50 Stainless steel, industrial hard chrome rod. 50.00″ Stroke. 3,000 p.s.i. maximum operating pressure. Custom, rod...

Buffalo Hydraulic High Tonnage Hydraulic Cylinders

Buffalo Hydraulic DA500X40-FLSPL  Hydraulic Cylinder. Double-acting high cycle design. 500 Tons pressing force @10,000 p.s.i. 32″ X 32″ Custom rod end flange mount. 40.00″ Stroke/travel....

BVA Hydraulics Hollow Plunger Jacking Cylinders

BVA Hydraulics HC Series of 10,000 psi, single acting, spring return, hollow plunger hydraulic cylinders are offered in 11 standard models ranging from 12-100 tons capacity. All BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed industry standard ASME B30.1.

Buffalo Hydraulic Custom Large Bore Hydraulic Cylinders

Buffalo Hydraulic BHDA8.00X5.00X44.00-SPL Large bore, custom, double-acting hydraulic cylinders. Ø8.00″ Internal bore. Ø5.00″ Chrome rod. Steel piston & gland. 5,000 p.s.i. operating pressure. 44.00″ Stroke/travel. From 50 p.s.i. –...

BVA Hydraulics HG Series High Tonnage Jacking Cylinders

BVA Hydraulics HL10002 Low Profile Hydraulic Cylinder. 98.2 Tons each @10,000 p.s.i. 5.55″ Collapsed height. 2.24″ Stroke/travel. Low Profile, single acting, spring return. 45 Lbs....

Buffalo Hydraulic Custom Hydraulic Cylinders

Buffalo Hydraulic BHDAFLM4.00X2.00X24.00-SPL Rugged, flange mount, double-acting hydraulic cylinders. Ø4.00″ Internal bore. Ø2.25″ Chrome rod. Bronze piston & gland. 4,000 p.s.i. operating pressure. 24.00″ Stroke/travel.

BVA Hydraulics High Tonnage Hydraulic Jacking Cylinders

BVA Hydraulics H Series of 10,000 psi, single acting, spring return hydraulic cylinders are offered in 42 standard models ranging from 5-100 tons capacity. All BVA Hydraulics products are manufactured through ISO 9001 strict compliance and all BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed industry standard ASME B30.1.

SPX Power Team Lock Nut Hydraulic Cylinders

Power Team R1002L Locking Collar Hydraulic Cylinder. Single acting, load return. Engineered locking collar nut. 100 Tons force @9,694 p.s.i. 7.25″ Minimum height. 2.00″ Stroke/Travel. Shown with optional 5° tilt...

BVA Hydraulics High Tonnage Jacking Cylinders

BVA Hydraulics H2512 Custom Hydraulic Jacking Cylinder. 25 Tons Lifting Force – each @9,708 p.s.i. Single acting, spring return. 16.77″ Retracted length. 12.20″ Stroke. Industrial...
