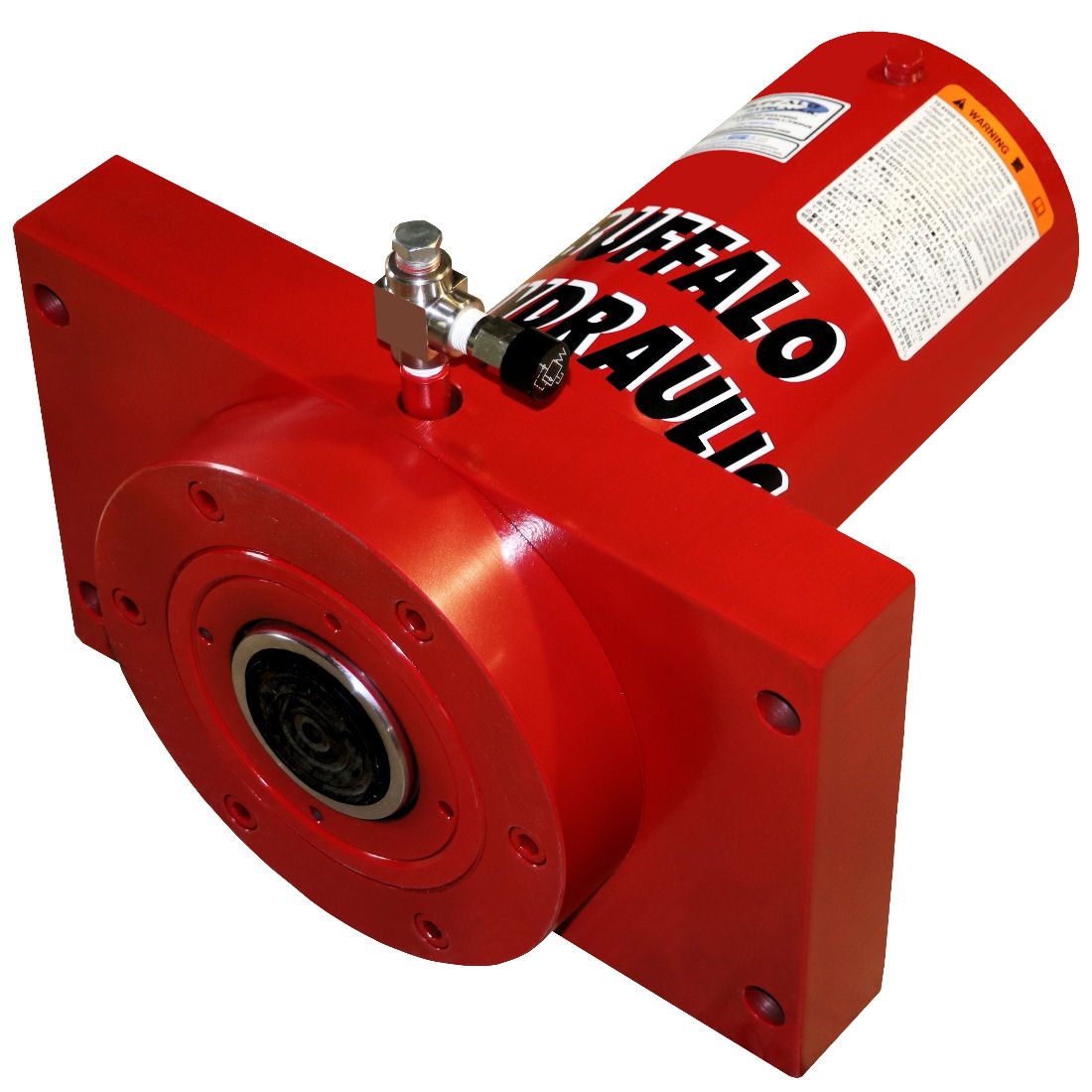

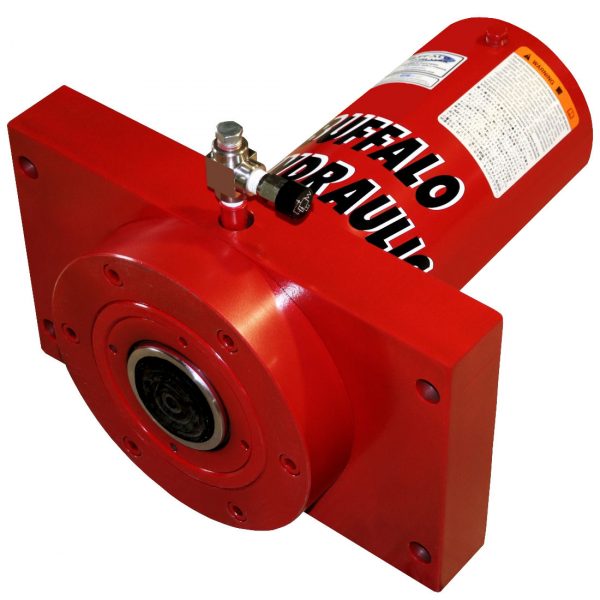

BVA Hydraulics, Custom Flange Mount 100T Capacity Hydraulic Press Cylinder

With over 80 years of experience in the sales and service of high-pressure, high-tonnage hydraulic applications, Buffalo Hydraulic serves as a proud partner with BVA Hydraulics to support your most demanding application.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics, Custom Flange Mount 100T Capacity Hydraulic Press Cylinder

  • 10,000 psi maximum pressure.
  • 200,000 lbs./force (100T) @9,723 psi.
  • Double-acting design.
  • Custom designed, 10.00″ X 18.00″, rod-end flange mount.
  • ø 3.75″ Chrome plunger.
  • ø 6.97″ Outside diameter.
  • 6.57″ Stroke.
  • 220 lbs.
