BVA Hydraulics High Tonnage Pump And Cylinder Sets
BVA Hydraulics Hydraulic Pump & Cylinder Sets are offered through 43 standard combinations ranging from 5 – 150 tons capacity.
If a hydraulic pump and cylinder set hasn’t been created that meets your project requirements, we’re glad to offer exactly what is needed to complete your application.
Inquire about BVA Hydraulics High Tonnage Pump And Cylinder Sets

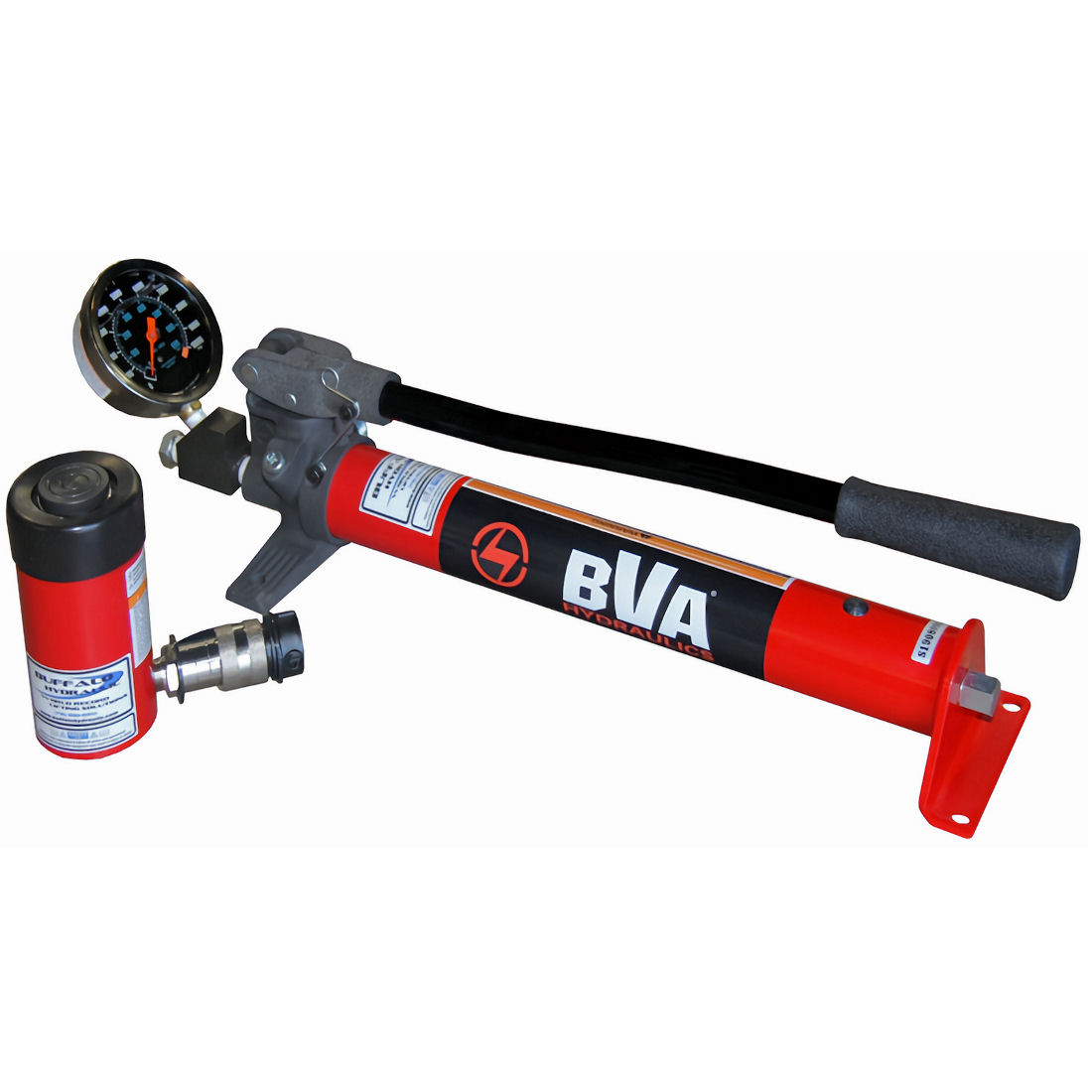

BVA Hydraulics P601S 10,000 psi, Hydraulic Hand Pump
- 10,000 psi maximum operating pressure.
- 37 cu.” Useable oil volume.
- Shown, equipped with NIST Certified pressure gauge.
- 0.15 cu.” Of oil per stroke from 0 – 10,000 psi.
- 13 lbs.
BVA Hydraulics H1002 Single-Acting, Spring-Return Hydraulic Cylinder
- 20,000 Lbs. Capacity (10T) @8,929 p.s.i.
- Can be used in a horizontal, inverted, or upright position.
- 4.84″ Minimum height.
- 2.01″ Stroke/travel
- 5.0 Lbs.
Related Products
BVA Hydraulics Mechanical – Hydraulic Flange Spreaders
BVA Hydraulics Limited Lifetime Warranty
BVA products are warranted to be free from defects in materials and workmanship. Any BVA product that does not conform to specification will be repaired or credited (at BVA's option) at BVA's expense for the life of the product.
Contact BVA or Buffalo Hydraulic for the disposition of this warranty.
This warranty does not cover ordinary wear and tear, abuse, misuse, alteration, or use of improper fluids or maintenance as determined by BVA and its authorized service centers. All electric motors, gas engines, batteries, and other parts or materials sold with or as part of BVA products but are separately warranted by another manufacturer, are covered by that manufacturer's warranty and not the BVA Lifetime Warranty. BVA shall not be liable for consequential or incidental damage or loss.
BVA Hydraulics – Buffalo Hydraulic High Tonnage Hydraulic Jacking Cylinders
BVA Hydraulics – Buffalo Hydraulic High Tonnage Hydraulic Jacking Cylinders BVA Hydraulics HL10002 Low Profile Jacking Cylinder 98.20 Tons capacity – each @10,000 p.s.i. (Maximum...
Buffalo Hydraulic, High-Volume, Hydraulic Flow Meter
Buffalo Hydraulic, High-Volume, Hydraulic Flow Meter The high-volume hydraulic flow meter from Buffalo Hydraulic is designed for precise measurement of fluid flow in hydraulic systems....
Buffalo Hydraulic Through Hole Lock Nut Cylinders
BHCSY60X4-24.00-SPL BVA Hydraulics PE50W4N05A Electric Hydraulic Pumps. 115 VAC, 1 Ph., 60 Hz. High capacity, 2-stage design. 3-Way, 3-Position manually operated directional valve. 10 Gallons...
Power Team HNS225, High Force, Hydraulic Nut Splitter
Power Team HNS Series of high force hydraulic nut splitters are available with hand-hydraulic, air-hydraulic and electric-hydraulic pumps and provide a reliable tool for your most demanding nut splitting project!
BVA Hydraulics – Buffalo Hydraulic Custom Hydraulic Presses
BVA Hydraulics PE30S4L02A Electric Hydraulic Pump. 115 VAC, 60 Hz., 1 Ph., 1 Hp. High flow, 2-stage design. 311 cu.” per minute – 1st Stage....
BVA Hydraulics Gas Engine, High-Tonnage, Bridge Jacking Pump & Console
BVA Hydraulics PG70M3N05 gas engine driven 10,000 psi hydraulic pump is shown equipped with a 3-way, 3-position, manually operated directional valve, and a custom, 8-port manifold. Eight manually operated, needle-style, flow control valves allow individual circuit control, and eight glycerin-filled pressure gauges provide individual circuit pressure monitoring.
This system was designed and supplied to provide flow and pressure to (8) 150 tons capacity, lock-nut style jacking cylinders for use in modifying a bridge overpass pier.
BVA Hydraulics products are manufactured through an International Quality Assurance System, ISO 9001 which involves consistent observation of administration, manufacturing, and production control. Under this system, the related operations are monitored in all aspects from the purchase order to the assembly line and through shipping of the order.
Buffalo Hydraulic proudly serves as a Factory Authorized Distributor as well as a Factory Authorized Warranty/Service Center for all BVA Hydraulics products. This close working team approach will provide you with any and all technical support you require, before, during your purchase, and after your jacking system is in use - Please call today and let us know how we can help in support of your high-pressure, high-tonnage hydraulic project!
4-Port Jacking System, Multi-Port Manifold
Pascal's Law provides that, oil will flow the path of least resistance. Incorporating independent metering valves is the first step in allowing an operator the ability to regulate respective flow rates to corresponding circuits. With the addition of precision quality pressure gauges and specialty load-holding check valves, Buffalo Hydraulic can equip you with the ability to complete a safe, even, and efficient multi-point, high-tonnage lift. In proving the weight of LC-39A & LC-39B at NASA's Kennedy Space Center, our custom-designed jacking system was selected to prove and maintain a vertical lifting tolerance within 0.035" over 21 points of lift. Through both projects, the custom Buffalo Hydraulic jacking system maintained and digitally proved a lifting tolerance over all 21 jacking points of not more than 0.020" while proving respective weights of 5,280,000 lbs. (LC-39A) and 5,340,000 lbs. (LC-39B). Upon review, the mechanical engineering team at Guinness World Records has recognized this as "The Heaviest Object Ever Weighed".
