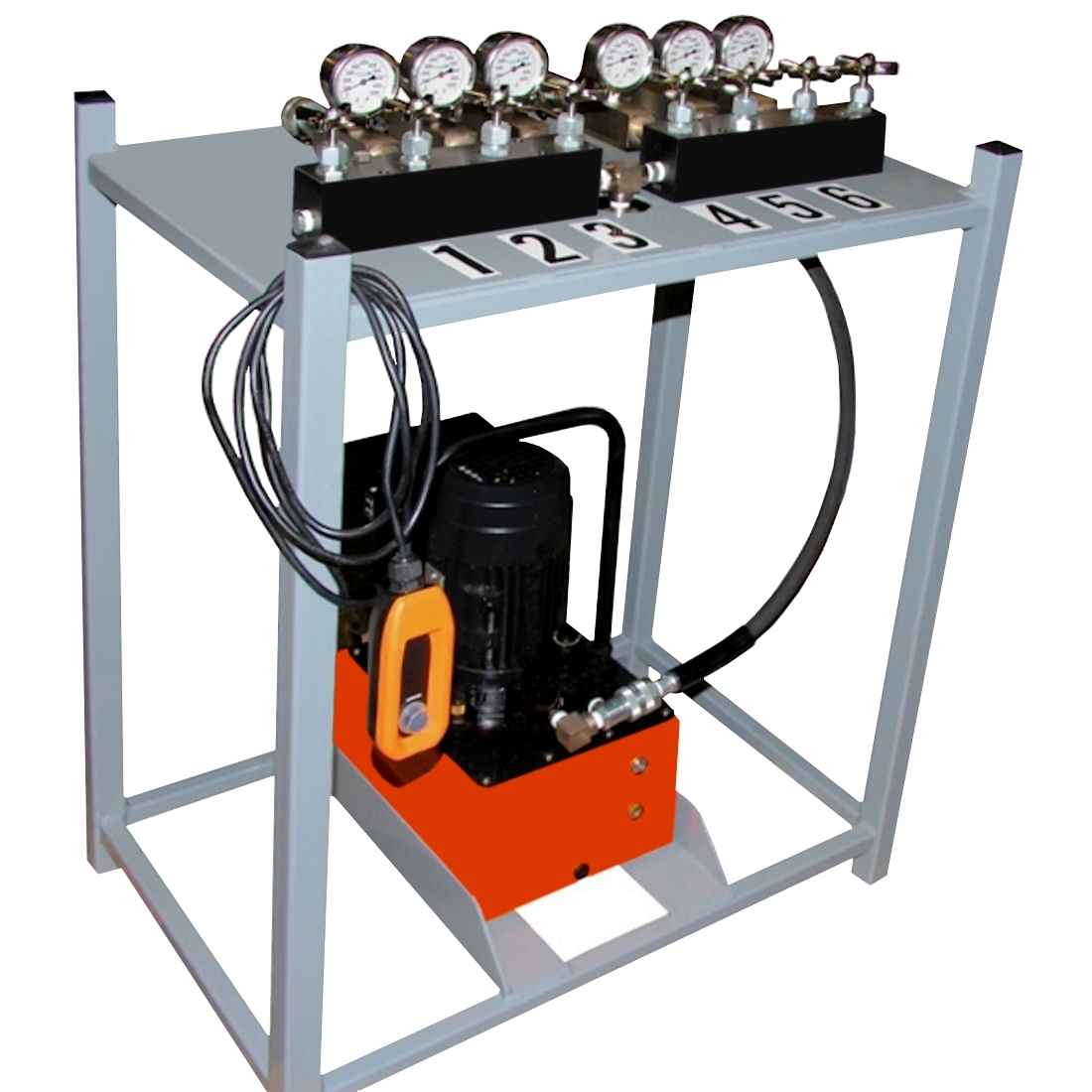

BHCJS 600X6.00-SPL High Tonnage, Hydraulic Jacking System Console
10,000 p.s.i. Maximum Pressure.
Six circuits with independent flow/pressure metering control option.
115 VAC, 60 hz., 1 Ph.
High flow, 2-stage design allows efficient advancement under no load and controlled lifting under load.
10′ Hand held moor control pendant.
1,155 cu.” (5 gallons) oil reservoir.
Glycerin filled pressure gauges.
Jacking points in increments of two.
This jacking system console was supplied with (6) 100 tons capacity jacking cylinders generating 600 tons of lifting force. Neatly assembled into a compact console allows the operator total control while monitoring system pressure in each circuit.
With jacking cylinders readily available from 1 – 1,500 tons capacity (each), this platform can be designed to accommodate any number of jacking points.
Partnering with us will ensure the integrity, safety and efficiency of your most complex multi-point high tonnage hydraulic jacking system.
