Power Team PE553 10,000 PSI, Electric-Hydraulic Pump

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

Power Team PE553 10,000 PSI, Electric-Hydraulic Pump

  • 10,000 psi maximum operating pressure.
  • 115 VAC, 1 Ph., 50/60 Hz., Universal motor
  • 2.3 Gallon reservoir.
  • 3-Position (Advance-Hold-Retract) Manually operated directional valve.
  • 10′ Hand-held momentary motor control pendant.
  • 440 cu.”/minute @700 p.s.i. (1st Stage).
  • 55 cu.”/minute @10,000 p.s.i. (2nd Stage).

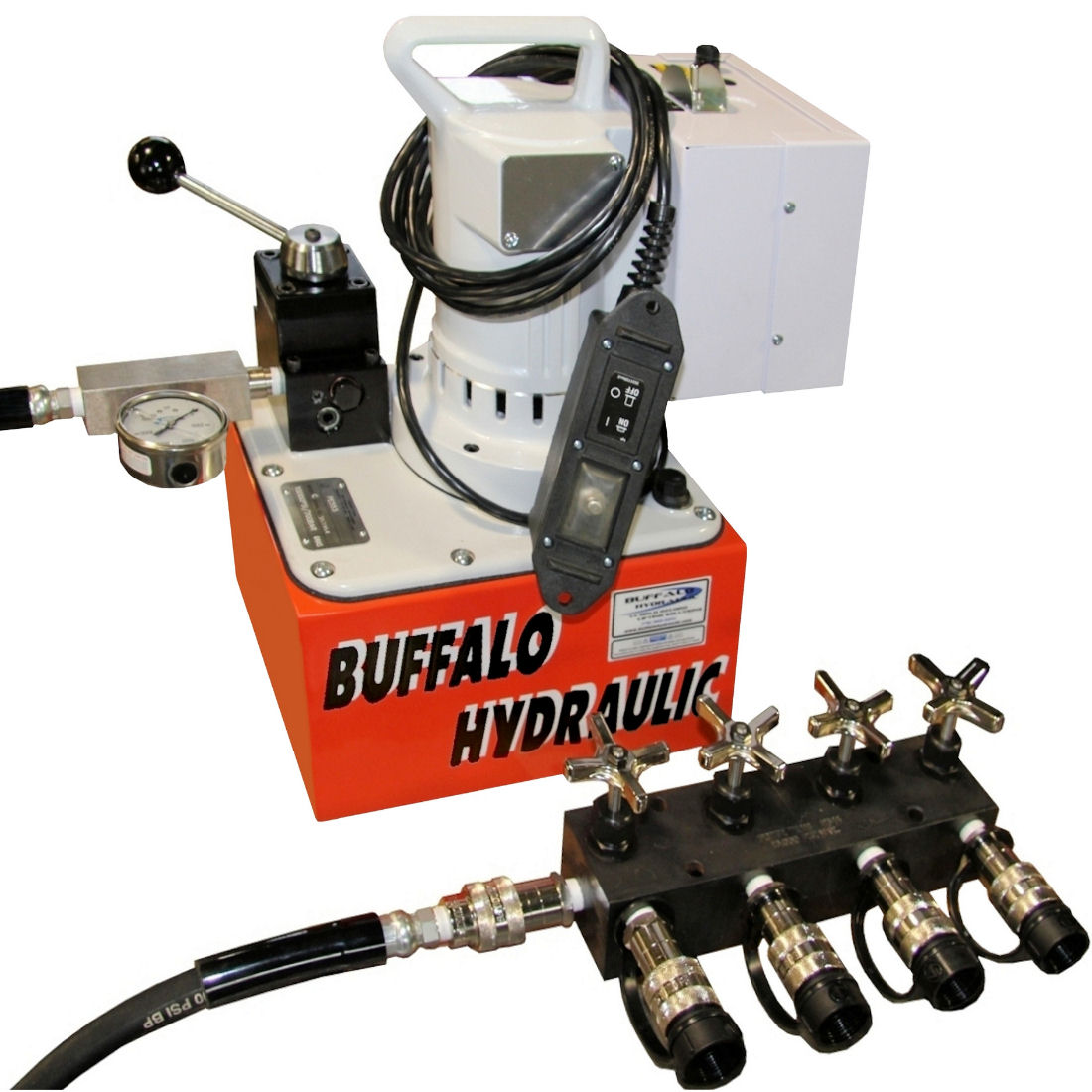

Shown with Power Team 9644 manifold.  Four manually operated metering/flow control valves allow for finite monitoring out to four jacking cylinders.
