1000x12 / assembly fixture
1000x12 / assembly fixture
Zoom images
  • 1000x12 / assembly fixture

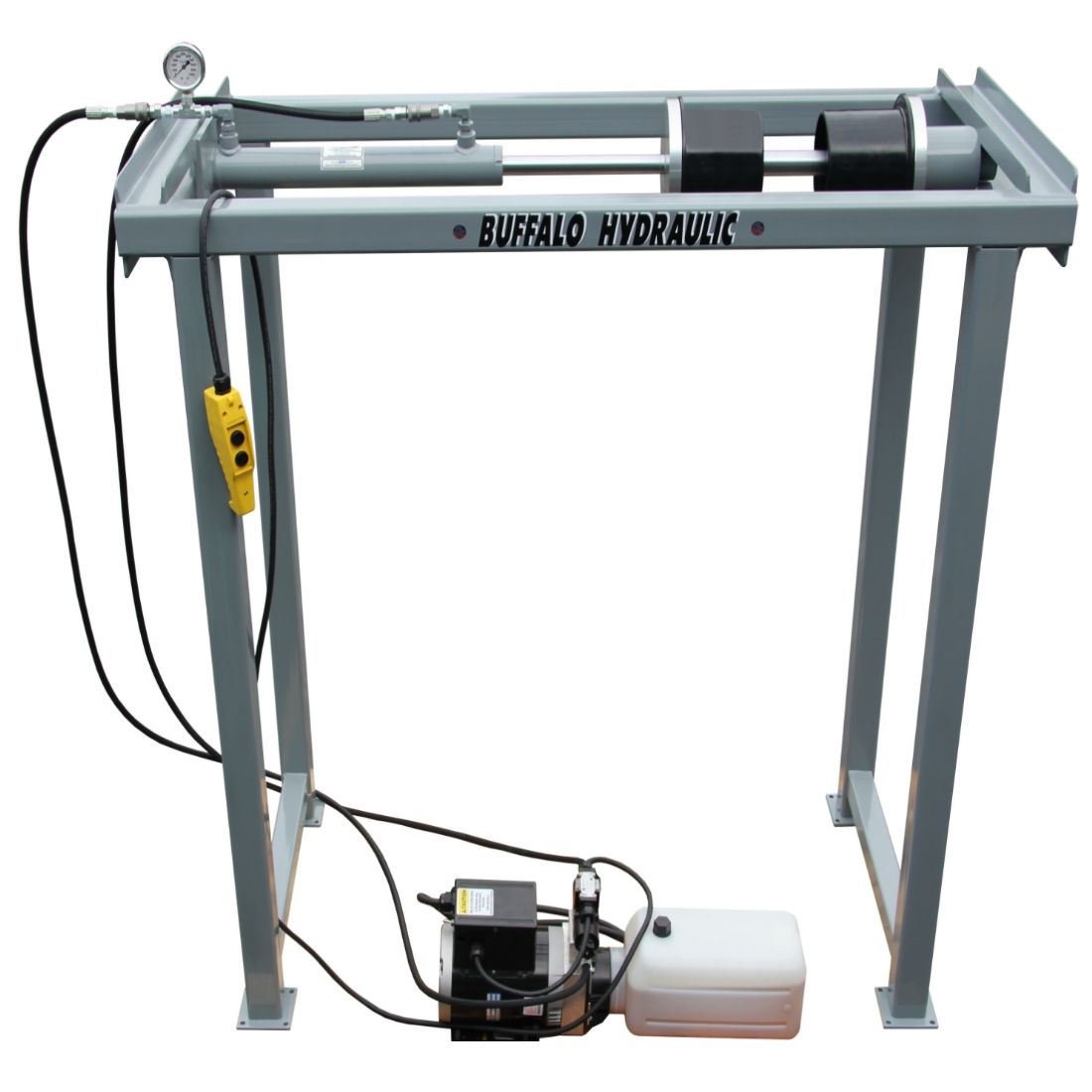

BHEHP-1000X12-S Hydraulic Assembly Fixture.

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

BHEHP-1000X12-SPL Electric Hydraulic Assembly Fixture.

  • 1,500 Lbs. pressing force.
  • 115 VAC, 1 Ph., 60 Hz.
  • 4-way, 3-position, tandem center, solenoid operated directional valve.
  • Hand held Advance/Retract pendant.
  • Internal relief valve.

This custom design assembly fixture is used for installing flange inserts into a roll assembly.
