BVA Hydraulics Hollow Plunger Jacking Cylinders

BVA Hydraulics HC Series of 10,000 psi, single acting, spring return, hollow plunger hydraulic cylinders are offered in 11 standard models ranging from 12-100 tons capacity.

All BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed industry standard ASME B30.1.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics HC6006T Hollow Plunger Hydraulic Cylinder.

  • Single acting, spring return, through-hole design.
  • Ø2.13″ Through-hole allows tensioning and pulling applications.
  • 60 Tons force @9,195 p.s.i.
  • 12.76″ Retracted height.
  • 6.00″ Stroke/Travel.
  • Ø6.25″ Outside diameter.
  • 81 Lbs.

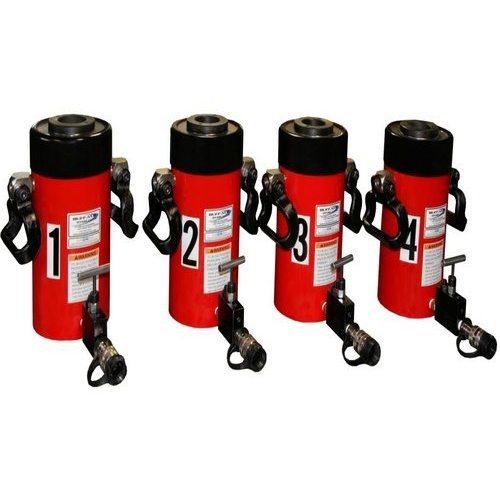

Shown equipped with BVA Hydraulics – CVMS3 manually operated, load holding check valves for added pressure holding quality.
