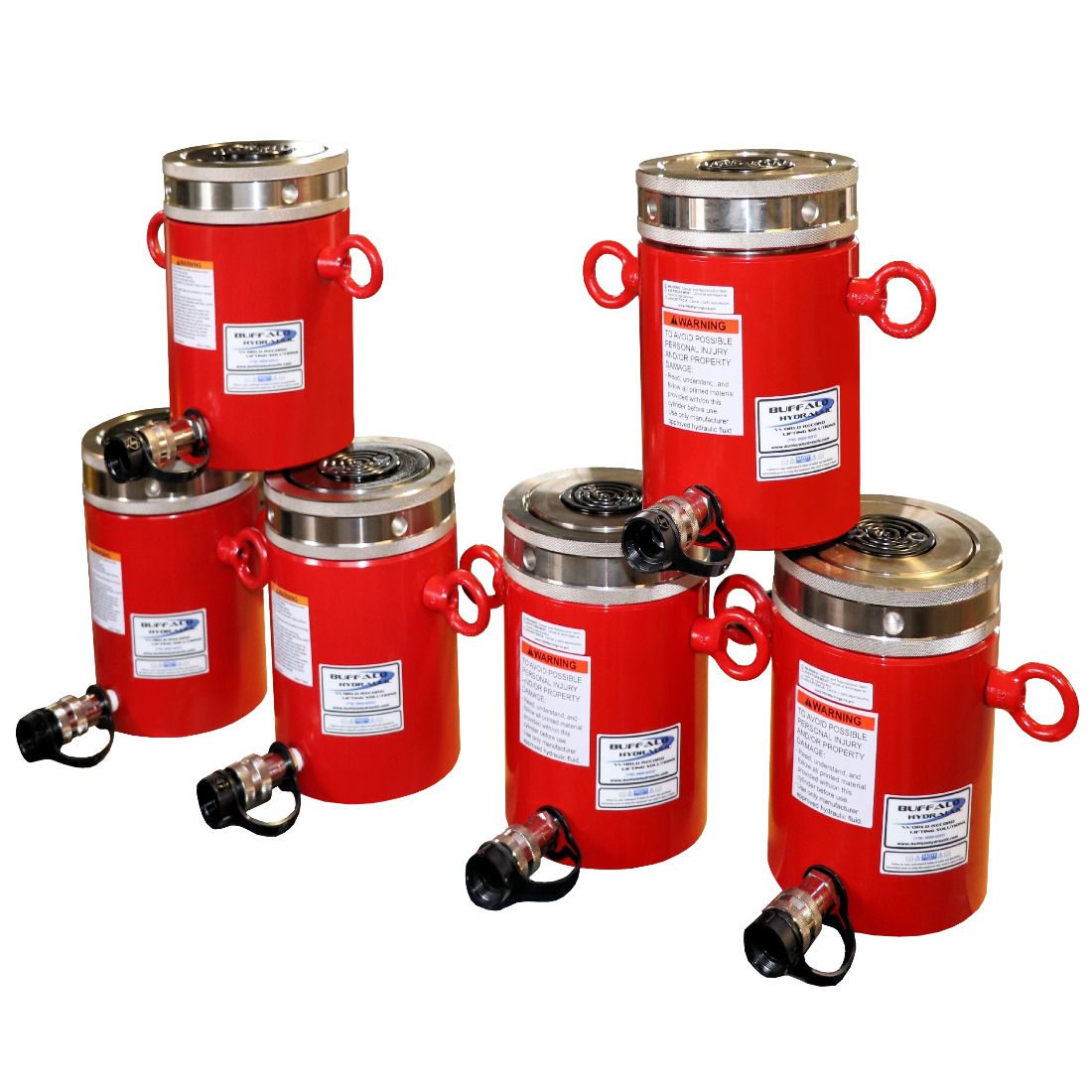

BVA Hydraulics HLN10008, 100 Tons Capacity, Lock-Nut Hydraulic Jacking Cylinders

BVA Hydraulics  HLN Series of lock-nut style jacking cylinders are offered through 30 standard models.  Adding mechanical, load-holding quality to a high-tonnage lift through the jacking cylinder design provides a great safety element.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics HLN10008, 100 Tons Capacity, Lock-Nut Hydraulic Jacking Cylinders

  • 10,000 psi maximum pressure.
  • Single acting, load return, lock-nut design.
  • Engineered mating lock nut creates mechanical load holding.
  • 100 Tons capacity each @9,723 psi.
  • 13.30″ Retracted height
  • 7.87″ Stroke/travel.
  • Nickel-plated plunger to help resist corrosion.
  • CH38F quick disconnect coupler included with all HLN models.
  • 123 Lbs.
